Introduction
GRITSEP FGC is an innovative sand and grit classifier designed to achieve the highest sand removal rate available on the market today.
Self-cleaning drainage module
Technical Specs
Description

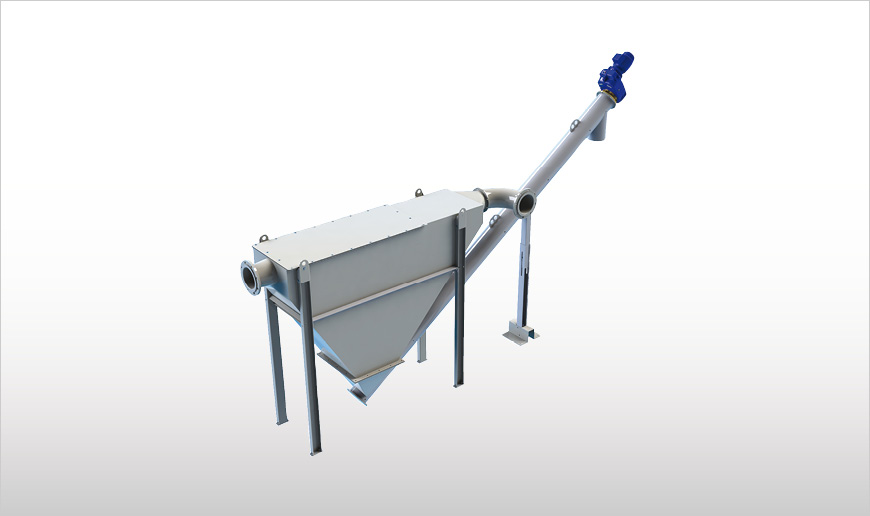

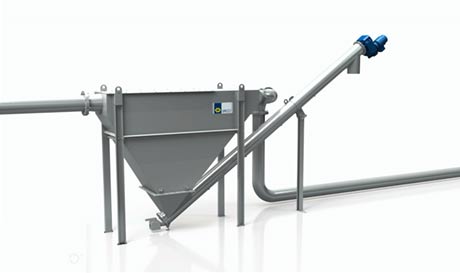

GRITSEP FGC is an innovative Sand and Grit Classifier designed using the most advanced simulation software. The GRITSEP FGC Fluid Dynamic Grit Classifier is the most compact, economical solution engineered for easy on-site assembly. Storage, transportation and maintenance costs are reduced to the minimum. GRITSEP FGC consists of a decanting tank, a grit and sand extracting screw and support stands.
Function
In various waste water treatment processes sand and grit removal is vital to preserve functionality of the machines. The GRITSEP FGC Fluid Dynamic Grit Classifier enables:
- Separating sand/grit from a waste water stream
- Extracting and de-watering residual solids
Features
- Sand separation with particle size ≥ 200 μm and bulk density ranging from 2.60 to 2.65 kg/dm3
- Fully welded tank
- Low drive power installed
- Small footprint
Benefits
- 95% sand removal
- Durable heavy-duty shaftless screws
- Self-cleaning drainage module manufactured from SINT engineering polymer
- Inexpensive transportation and installation
Options
- Extracting screw
- Tank anti-wear system
- Outlet
- Drive guard
- Alternative voltage and frequency
- Alternative degree of motor protection
- Control panel
- Sand sensor
- Air injection
- De-gasing tank
- Pipe washing system
Accessories
- Durable, high-density SINT engineering polymer anti-wear profile
- Endless tube for odour reduction
