Manual Bag Openers RSM

Dust-controlled bag dumping

Introduction

Manual Bag Openers 1

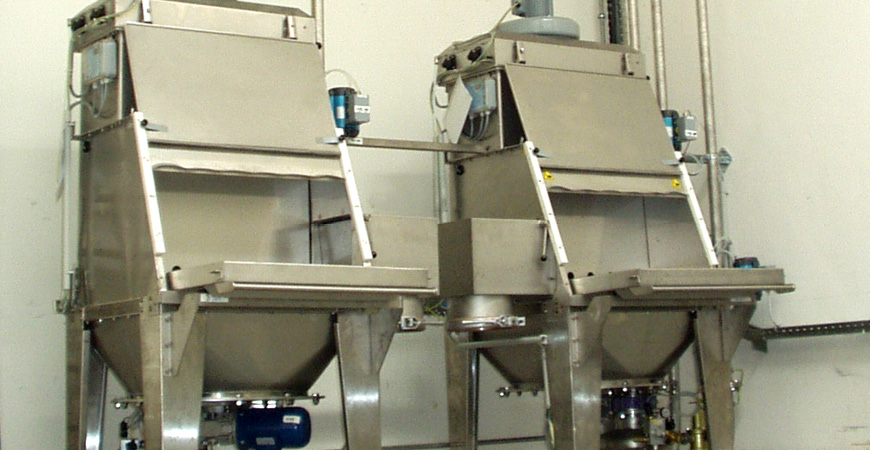

Manual Bag Openers 2

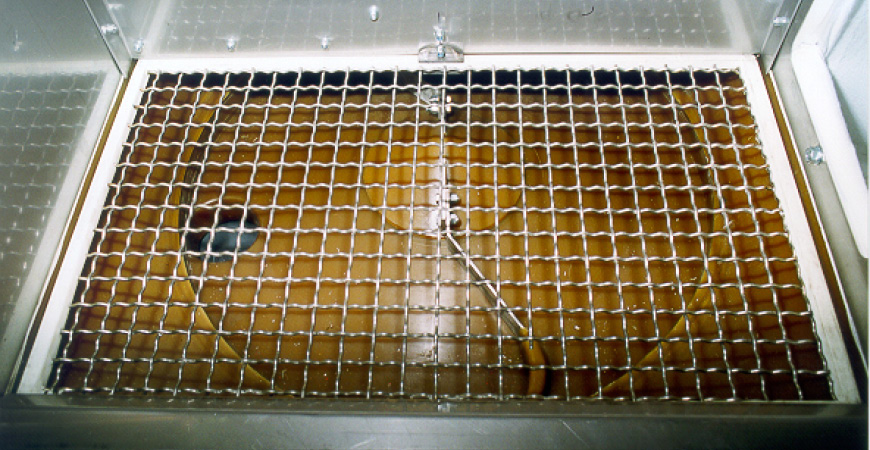

Manual Bag Openers 3
Produced in large series, the RSM Manual Bag Opener shows an industrial design as a result of in-depth assessment of user requirements in a number of industries.

Compact overall dimensions and particularly user-friendly design
Compact overall dimensions and particularly user-friendly design
Easy and quick access to internal parts for cleaning
Easy and quick access to internal parts for cleaning
Built-in fan-operated, air jet-cleaned, maintenance-friendly dust collector
Built-in fan-operated, air jet-cleaned, maintenance-friendly dust collector

Technical Specs

Description

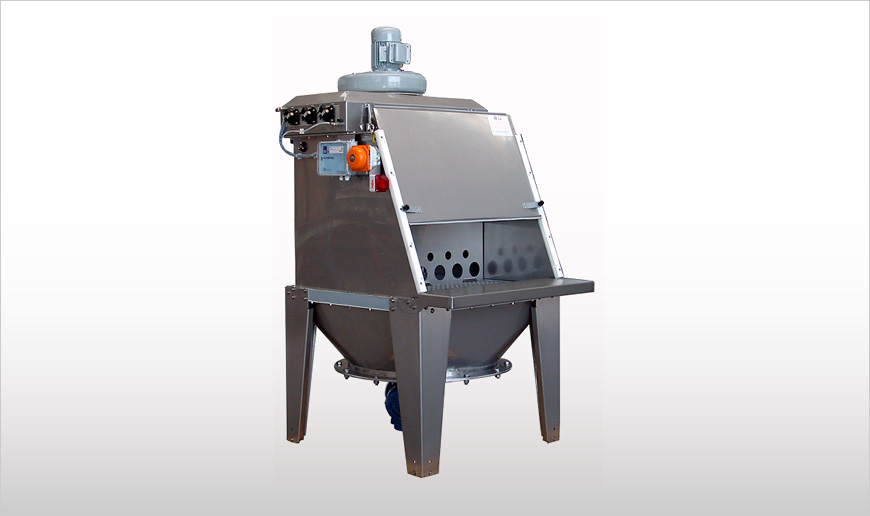

The RSM Manual Bag Opener consists of a grille with a rest fitted on its front. The grille is mounted on top of a hopper which is supported by four feet. A fabricated hood with protection door fitted on its front covers the hopper and grille. RSM Bag Openers are manufactured from high-finish-grade materials and come with or without integrated de-dusting filter unit. In the version with integrated dust filter the filter elements are pneumatically cleaned by reverse air jet.
Manual Bag Openers

Function

The operator puts the bag on the rest and pushes it on to the grille. He then slits the bag open with a vertical cut and shakes it empty. While the bag content may be discharged through a hopper or by BINSWEEP, a special rotary discharging device, into any type of feeder, the built-in fan operated, air jet cleaned dust collector filters the dust generated during emptying. The empty bag is dropped into the chute on the side which leads into the optional COM Waste Bag Compactor (see COM).
Manual RSM Bag Openers are designed to minimise material residue. They satisfy a large number of applications due to their modular component design.

Features

  • Material: carbon steel, 304 L / 316 L stainless steel
  • Available with de-dusting filter or equipped for centralised dust suction
  • Filter element options: cartridges, round bags, elliptical bags
  • Filter surface from 3 to 22 m2 (32 to 237 sq ft)
  • Collecting hoppers with different capacity volumes
  • Support feet with possibility of height adjustment
  • Available in ATEX version, zone 22
  • Space-saving overall dimensions and compact user-oriented design
  • Built-in fan-operated, air jet-cleaned, maintenance-friendly dust collector

Benefits

  • Easy and quick access to internal parts for cleaning
  • Built-in fan-operated, air jet-cleaned, maintenance-friendly dust collector
  • Space-saving overall dimensions and compact user-friendly design

Options

  • Pneumatic vibrator for specially equipped hoppers
  • Special type hopper for fitting of BINSWEEP Rotary Discharger

Accessories

  • Accessories for connection of COM Waste Bag Compactor
