Externally Fed Drum Screens SGR

Introduction

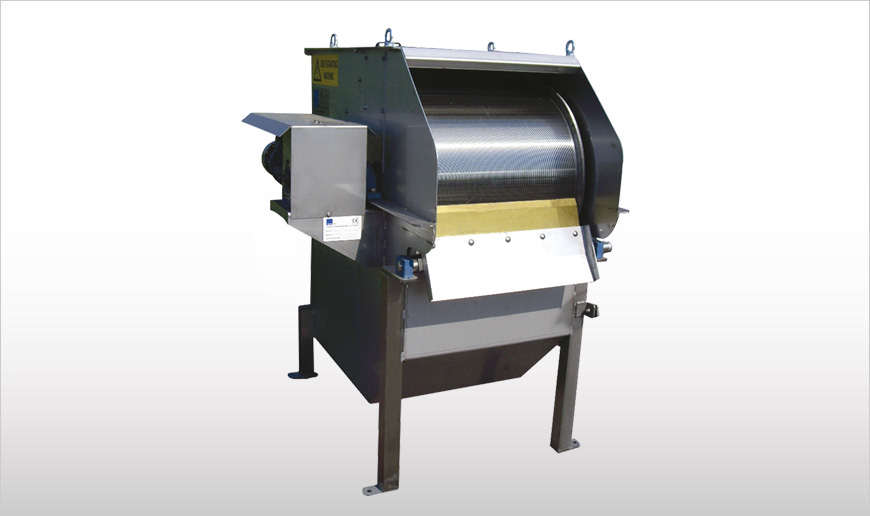

Externally Fed Drum Screens 1

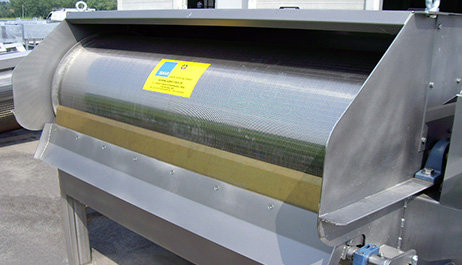

Externally Fed Drum Screens 2

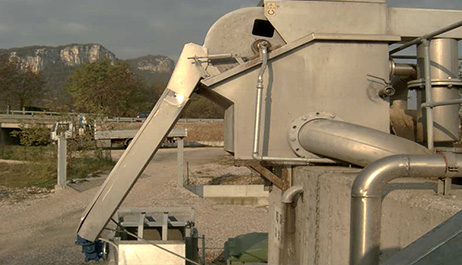

Externally Fed Drum Screens 3
SGR Externally Fed Drum Screens are used for fine screening of sewage from both industrial and municipal purification plants. Alternatively, they are used for screening of process water from industrial processing plants.
Compact design
Compact design
Slot zero for increased drum sturdiness
Slot zero for increased drum sturdiness
High flow rates and fine spacing
High flow rates and fine spacing

Technical Specs

Description

SGR Externally Fed Drum Screens consist of a stainless steel screen drum contained in a stainless steel tank. The drum consists of a wedge wire screen. Due to the trapezoidal screen slots, solids contained in the waste water enables are retained.
Externally Fed Drum Screens

Function

Waste water is conveyed through a distributor onto the external surface of the drum screen. The side sealing consists of nylon sliding blocks.
Solids are retained on the external surface of the drum screen and subsequently discharged. The drum is cleaned by means of a brass plate.
After passing through the inside of the drum screen, clean water is collected on the bottom of the tank and discharged through a nozzle.
Rotation of the filter occurs by coupling connection to a gear reducer mounted at the end of the drum.
At the opposite end a cleaning system is installed. The system is composed of a pipe equipped with a high pressure nozzle which periodically cleans the filtering drum (mobile washing system). The system has to be connected to the water mains.

Features

  • Slot width: 0.25 ~ 2.50 mm
  • Wedge wire filter with so-called “slot zero” to ensure drum resistance
  • Screen in 304 L / 316 L SS

Benefits

  • Compact design, easy to install in narrow spaces / aerial channels
  • High flow rates
  • Self-cleaning
  • User-friendly
  • Low energy consumption and limited maintenance

Options

  • Alternative screen types and sizes
  • Alternative voltage and frequency
  • Alternative degree of motor protection
  • Control panel
  • Mobile drum washing system with high pressure water pre-arrangement

Accessories

  • Teflon cleaning blade
  • Overflow

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

SAVECO_SGR_EN_0419_EDIT.pdf
Latest edition: April 2019
English
Code: 203001301
SAVECO_SGR_DE_0419_EDIT.pdf
Latest edition: January 0001
German
Code: 203001412
SAVECO_SGR_IT_0419_EDIT.pdf
Latest edition: April 2019
Italian
Code: 203001323
SAVECO_SGR_FR_0419_EDIT.pdf
Latest edition: April 2019
French
Code: 203001375
SAVECO_SGR_RU_0419_EDIT.pdf
Latest edition: April 2019
Russian
Code: 203001588
