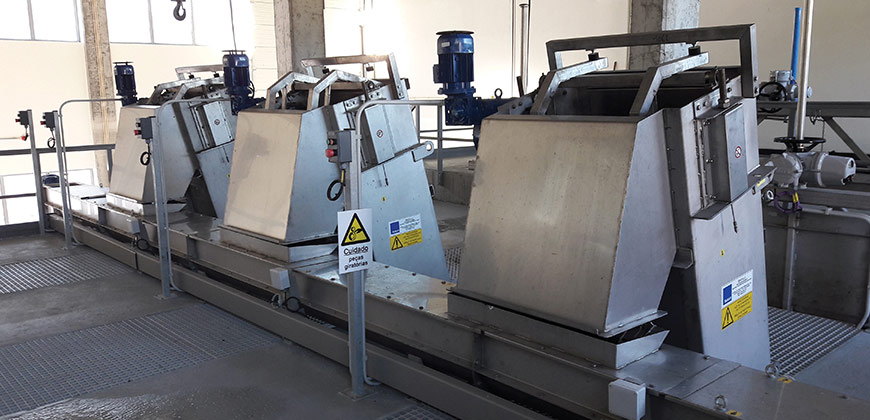

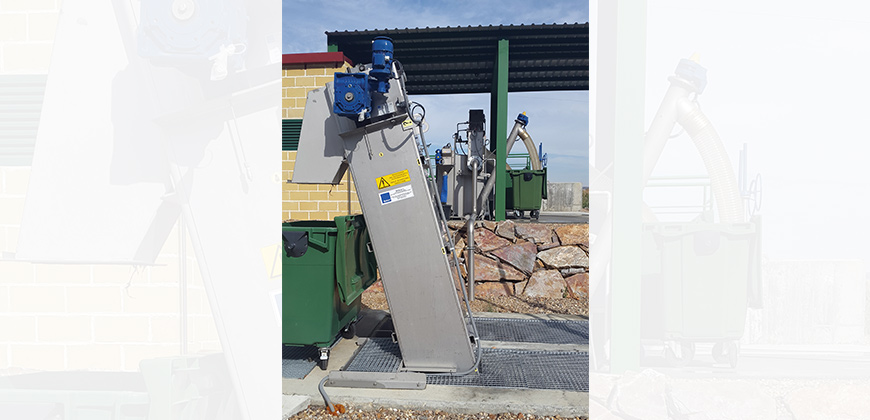

GVL Mechanical Screens consist of a steel frame and a bar filter, varying according to the screening efficiency required. GVL features highly resistant galvanized steel chains transmission shaft and upper sprocket and a filtration zone with individually repleaceable bars section. GVL screens are used for coarse screening in both municipal and industrial waste water plants.

The GVL model was developed with the aim of obtaining a highly industrialized product with new standards that combine the known reliability (due to thousands of installations of bar screens during the last 25 years) with low purchase, management and maintenance costs.

Function

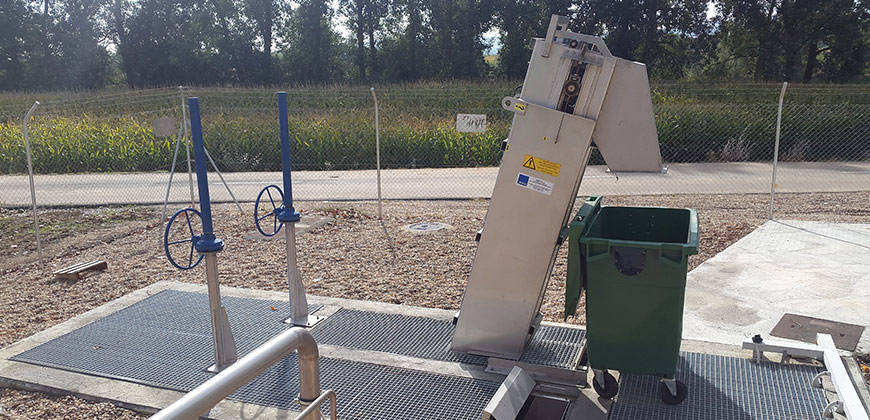

Waste water flows into the upstream end of the unit where screenings is captured on the bars. Chain-driven rakes clean the bars, conveying at the same time the solids to the discharge point. There material is removed from the rakes by a wiper and discharged into a dumpster, conveyor or compactor.

Features

10mm ~ 40mm spacing
2 or more cleaning rakes ensuring quick, efficient solids removal
Channel width: 400 ~ 1,200 mm
75-degree incline angle

Benefits

Precision laser-cut raking tines cut from single stainless steel bar
Recessed guide channels for drive chains reducing chain exposure to screenings
Lower chain guide with no moving parts No lower sprocket nor bearings
No lower sprocket, no bearings
Reduced service requirements (no need to take screen out of channel)

Options

Conductive level probe complete with bracket
