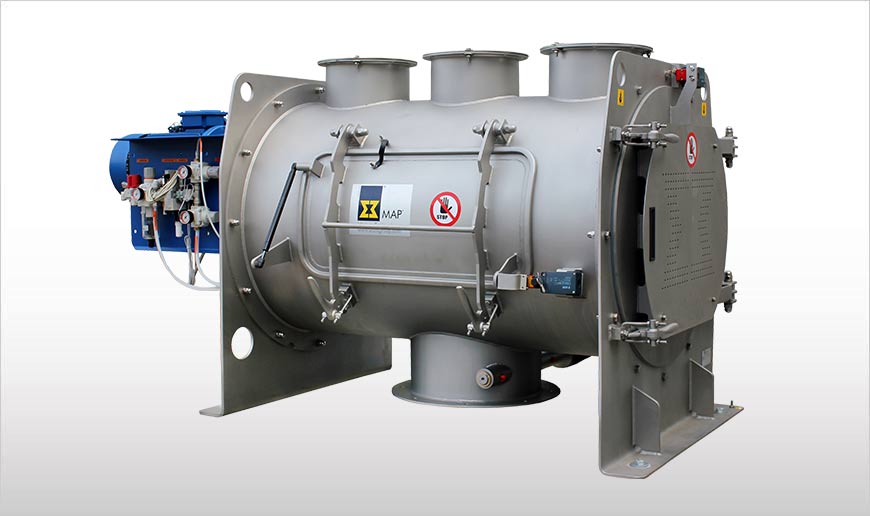

The QuickClean WBO Single-shaft Mixer features a mixing drum with one or more inlet spouts, a venting spout, and an outlet with a discharge valve. It includes a full-material mixing shaft, a drum-closing end plate at the drive end with a flanged end bearing assembly, and integrated air or gas-purged shaft seals. The drive unit is equipped with a power transmission system.

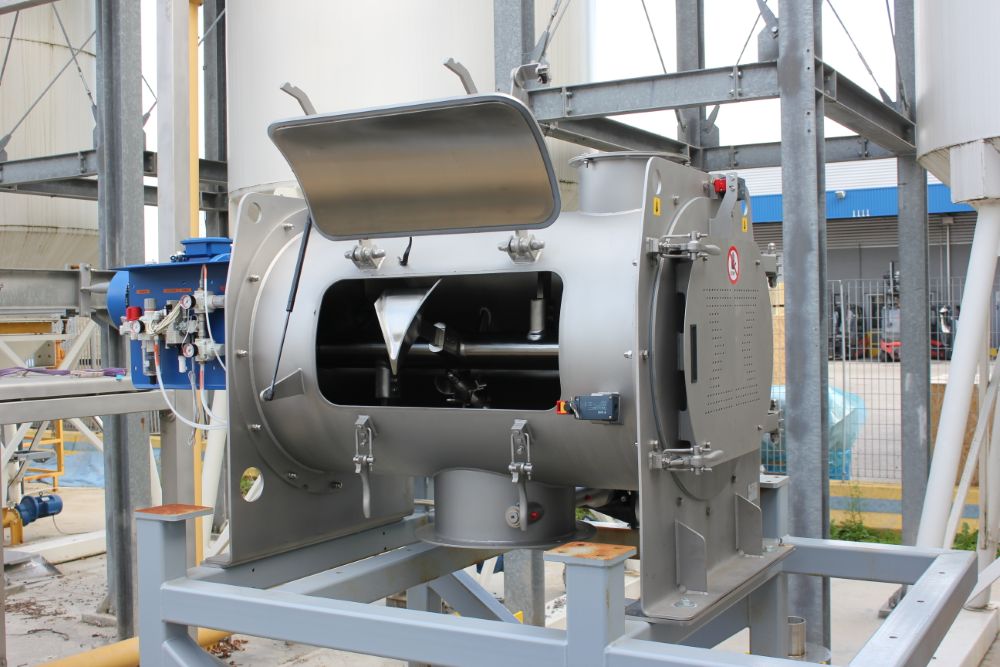

At the opposite end, the machine has a front cover plate with an integrated inspection door. Ploughshare or inclined blade-type shovels are arranged on the mixer shaft within a horizontal, cylindrical chamber, creating turbulence that ensures all product particles remain engaged in the mixing process. This prevents dead spots or slow-movement zones, guaranteeing precise mixing. Where required, separately driven high-speed choppers can be installed to achieve the desired mixing effect.

Function

The QuickClean WBO Horizontal Single-shaft Industrial Batch Mixer operates on the principle of mechanical fluidisation. The specific shape, position, and rotation speed of the mixing tools create a centrifugal vortex motion, projecting materials in a three-dimensional pattern and ensuring thorough blending. This allows ingredients with varying particle sizes and bulk densities to be mixed with high precision in the shortest possible time. QuickClean WBO Batch Mixers are used for mixing dry powders, granules, or short fibres, as well as for moistening, agglomerating, or granulating these materials.

Features

Capacity: 20 ~ 770 litres per batch
Drive unit: 220/240 – 380/420 V, 50 Hz; 440/480 V, 60 Hz
Ploughshare or blade-type tools
Air or gas-purged end bearing assemblies
Central outlet with discharge valve
Chamber and mixing shaft manufactured from carbon steel or 304L or 316L stainless steel
Machine completely assembled and tested
Revolution counter and temperature probe pre-equipment
High level finish
Wide range of accessories available

Benefits

Excellent accessibility
Minimum residue
Reduced operating costs
High mixing homogeneity
Low power consumption
Hygienic design
Perfect solution for light-duty free-flowing mixtures

Options

Bolted mixing tools or welded blades
Choppers and injection wands
Thermocouples on bearings and seals
Thermoresistance on chamber
Pneumatic control panel
Junction box
Knob on inlets
