Easy access to all internal mechanical parts

High feeding accuracy

Robust, compact design

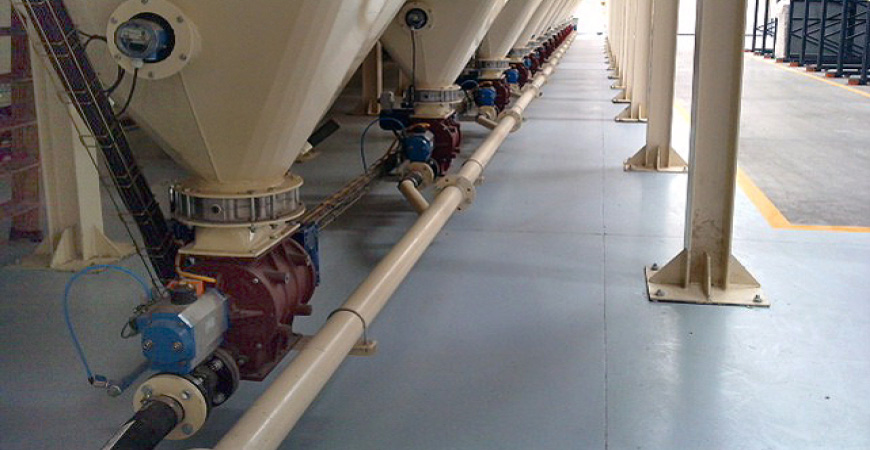

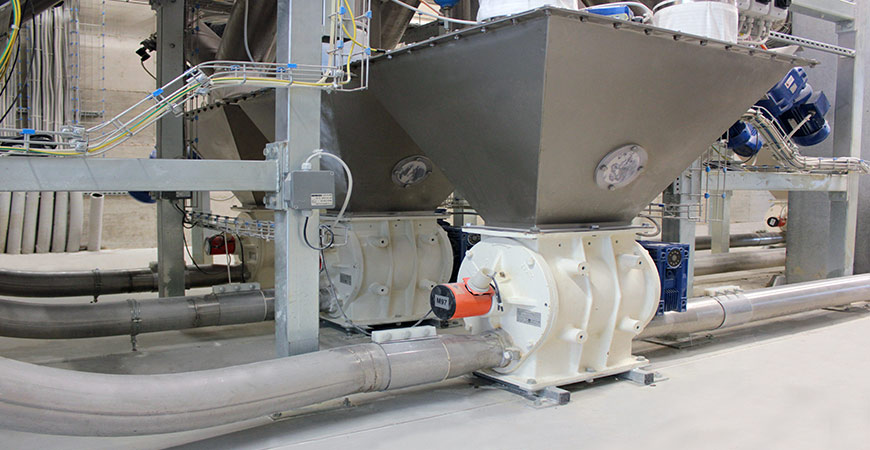

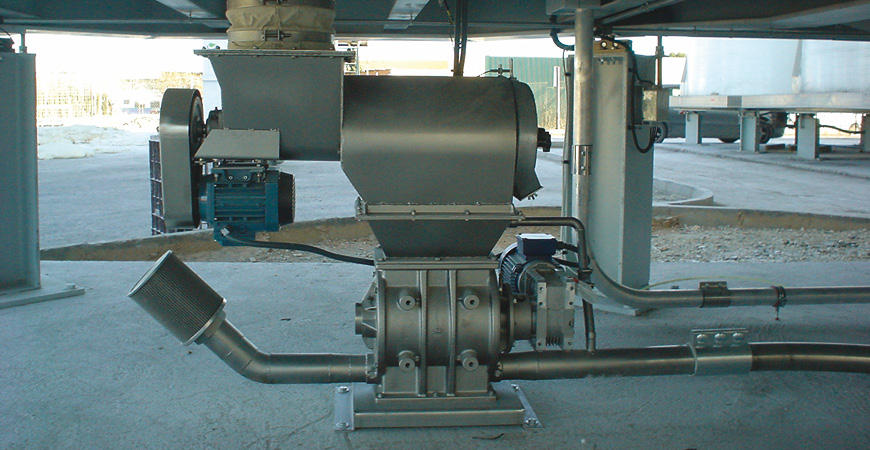

RVS Blow-Through Rotary Valves consist of a tubular cast iron or stainless steel casing, a horizontally mounted rotor with a certain number of oblique V-shaped cross section compartments, a drive unit and a casing cover at each end.

Function

Two compartments at a time of the continuously turning rotor are filled up with material entering through the inlet at the top of the Rotary Valve. After less than half a turn material falls through the bottom outlet into an air stream passing through a pneumatic conveying pipeline connected with the bottom part of the Rotary Valve.

Features

Feed rate: 5 ~ 80 litres per revolution
Different drives for different rotation speeds
Various materials and treatments available depending on material handled
Maximum differential pressure: 0.8 bar (11.6 PSI)

Benefits

Robust, compact design
Standard open rotor with bevelled edges (except VS80)
Easy access to all internal mechanical parts

Options

Available as ATEX version, Zone 22
