VFP Butterfly Valves consist of two high-pressure die-cast semi-bodies manufactured from aluminium alloy, a swivel disc in SINT engineering polymer, stainless steelor cast iron, and a pre-stressed elastomeric
seal.
For food applications a version with stainless steel disc and integral FDA-approved seal is available.
VFP Butterfly Valve can be used for any kind of powder or granular material stored in silos or containers.

Function

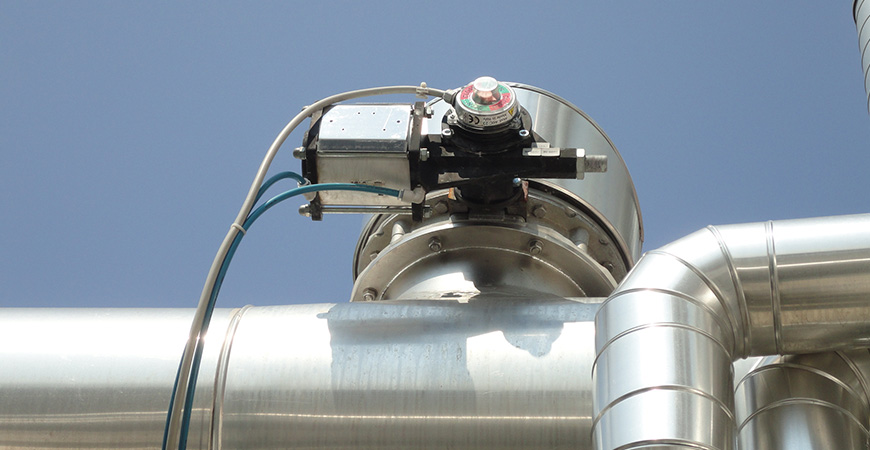

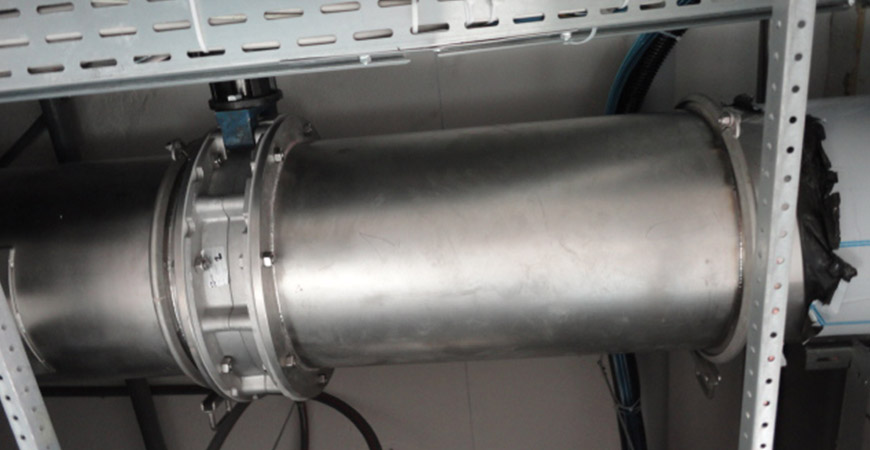

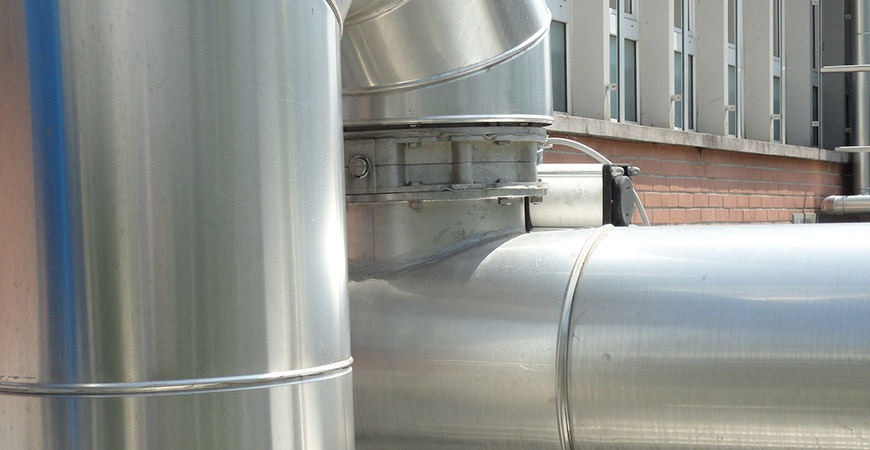

VFP Butterfly Valves are used in all types of bulk solids processing plants where interception of gravity-fed or pneumatically conveyed dry powders or granules is required. VFP Butterfly Valves can be fitted beneath hoppers, bins, silos, screw or other type conveyors, or for material interception in pneumatic conveying ducts. Due to their special design and to the engineering materials used, they represent a particularly economic yet most efficient solution in all product processing where contamination and material pollution represent a critical point.

Features

Food-grade components manufactured from FDA and EC 1935/2004-certified materials
V2FP with identical top and bottom flange
Pressure-proof up to 0.2 bar (2.9 PSI)
High-pressure die-cast semi-bodies manufactured from aluminium alloy
Disc in cast iron, SINT^® or Polyacetal engineering polymer, stainless steel
Seals for standard or food-grade application
Highly abrasion-resistant interchangeable discs

Benefits

Certified EC 1935/2004
Quick maintenance thanks to the small number of components

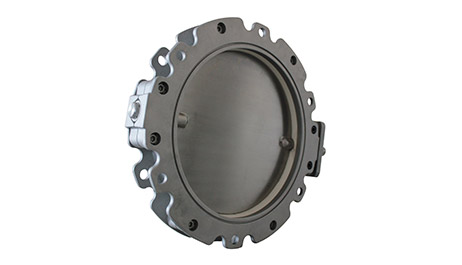

Lightweight and easy to handle thanks to minimized height dimensions
Easy to fit thanks PN and ANSI flange compatibility
Low residue and contamination thanks to the new inlet dimensions and sizes available
Ex-stock delivery

Options

ATEX zone 20 internal and zone 22 external certification
Stainless steel disc and integral seal version for food industry

Download

Here below you will find all documents regarding this product. Click “Other Languages” for translated versions.

Select all

Language

Name

Issue

Latest edition

Code

Brochures

Language

Name

Issue

Latest edition

09/2016

Code

Language

Name

VFP - Fit-Frame Butterfly Valves

Issue

Latest edition

06/2021

Code

203001748

To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
