Easy on-site machine assembly

No civil works required

Optimum footprint-net volume ratio

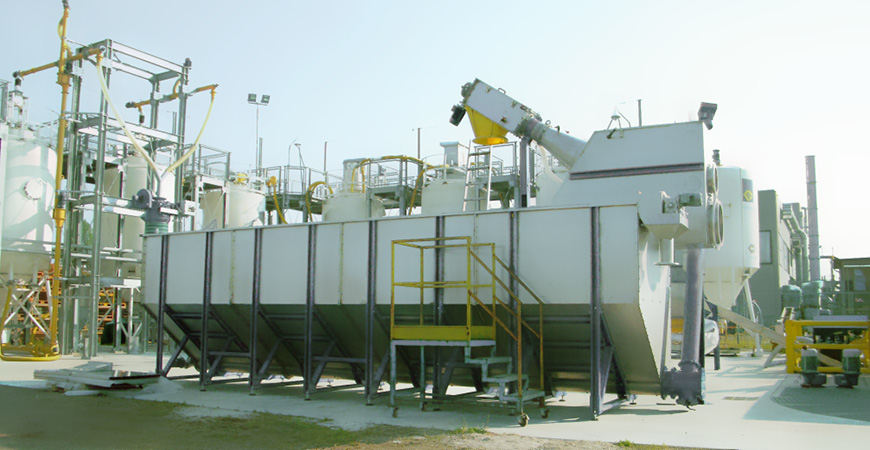

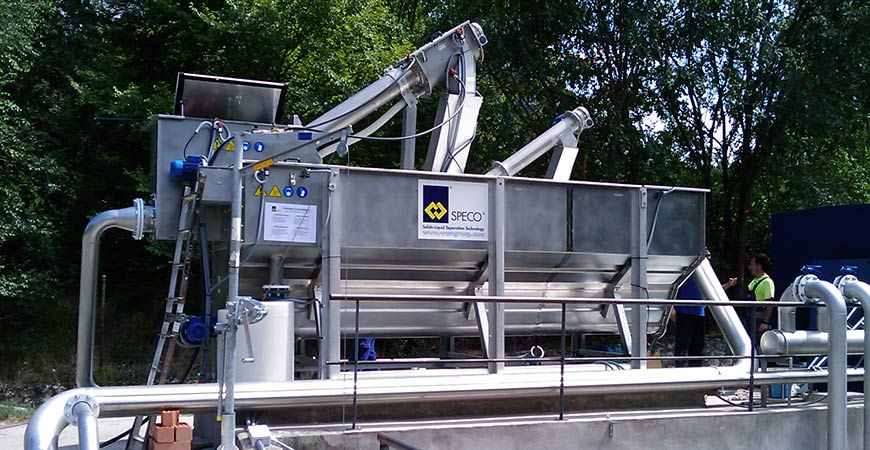

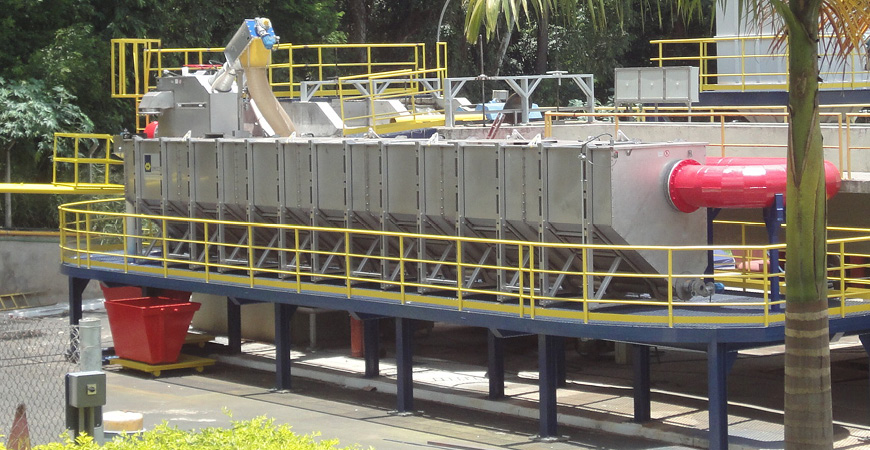

The WASTEMASTER TSF2/3 Combined Pre-Treatment Plant consists of a screw screen, a decanting tank, a sand/grit extracting screw and a grease scraper.
Sewage from civil or industrial waste water treatment plants has to be pre-treated before being transferred to any kind of purification system. The WASTEMASTER TSF carries out different processes: de-watering and compacting of screened solid waste, separation of sand/grit and removal of floating, greasy matter.

Function

During the process solids, sand/grit and greasy matter present in the sewage are removed in order to avoid overloading of the downstream treatment system. Waste water enters the plant and is processed by means of separation by screw screen. Subsequently, a sedimentation process and the extraction of the sand or grit takes place. In the TSF3-model an additional degreasing device sees to the removal of fats and suspended solids using an aeration system and a special floating scraper.

Features

Flow rates of up to 210 litres per second (445 cfm)
Inlet screen mesh: 0.5 ~ 10 mm
Sand separation with TSF2/ 3: 90% particle size ≥ 200 μm
Grease removal with TSF3
Up to 35% solids volume reduction
Modular design

Benefits

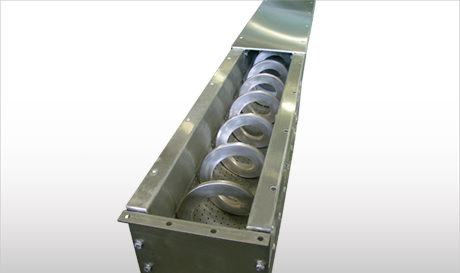

No jamming or locking even with fibrous materials due to shaftless spiral
Volume reduction of solids of up to 35%
Absence of internal bearings
Low r.p.m.
Special long-life screw brushes
Compact design
Perfect for over-ground installation especially with limited space available, no civil works required
Low investment and maintenance costs
On-site assembly possible
Heavy-duty screw
Floating scraper for grease/fat removal

Options

Alternative voltage and frequency
Alternative degree of motor protection
Control panel
Drive guard
Screen type
Overflow
Chutes
Fixed internal pipe
Packaging

Accessories

Bag clamping system
Endless tube for screening
Endless tube for sand
