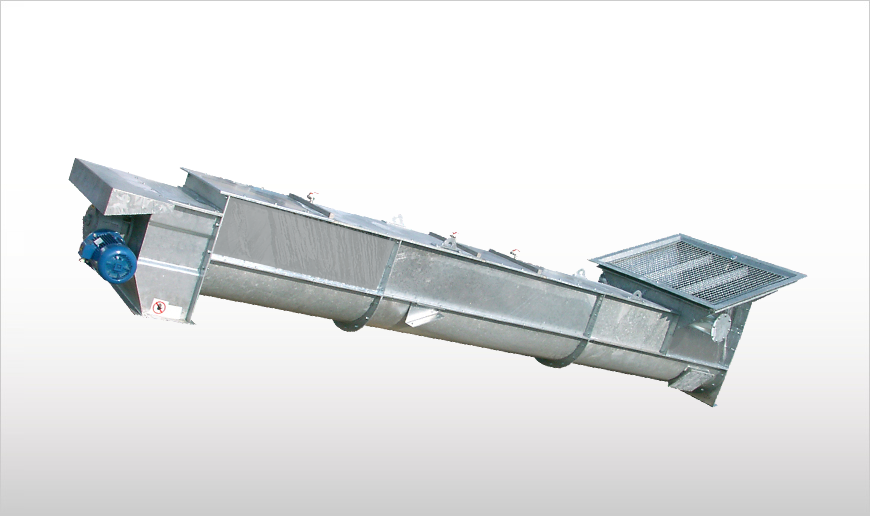

CONSEP® ZSB is a Concrete Reclaimer used in ready-mixed concrete batching plants for recycling concrete washed out from truck mixers and in pre-cast concrete batching plants for recovery of concrete from moulds.
Quick Return On Investment
Excellent solids-liquid separation and washing of aggregates
技术参数
描述
CONSEP® ZSB is a Concrete Reclaimer used in ready-mixed concrete batching plants for recycling concrete washed out from truck mixers and in pre-cast concrete batching plants for recovery of concrete from moulds.
功能
The solid aggregate particles (sand and gravel) having a particle size larger than 0.3mm (0.01 in) are separated from the wastewater by an inclined heavy-duty screw.
产品特点
- Input Flow rate: 15 m³/h (9 cfm) of diluted concrete(*)
- Drive power: 5.5 kW (7.5 HP) / 7.7 kW (10 HP) – 400 V, 3 phases
- All fabricated parts in galvanized carbon steel
- Heavy-duty ribbon flight screw in high-resistance steel
- Sturdy extra-heavy-duty design
- Flanged shaft couplings
- Internal, replaceable maintenance-free lower bearing
(*) Diluted concrete: truck returned concrete + same quantity of clean diluting water before discharging
- Low water consumption and efficient aggregate washing
- Easy maintenance (easy access to all equipment components)
- High reliability
- Under or above ground installation
优势
- Long and short versions
- Different inlet hopper sizes
