Gear Motor Actuator AE

Suitable for various WAMGROUP valves

Introduction

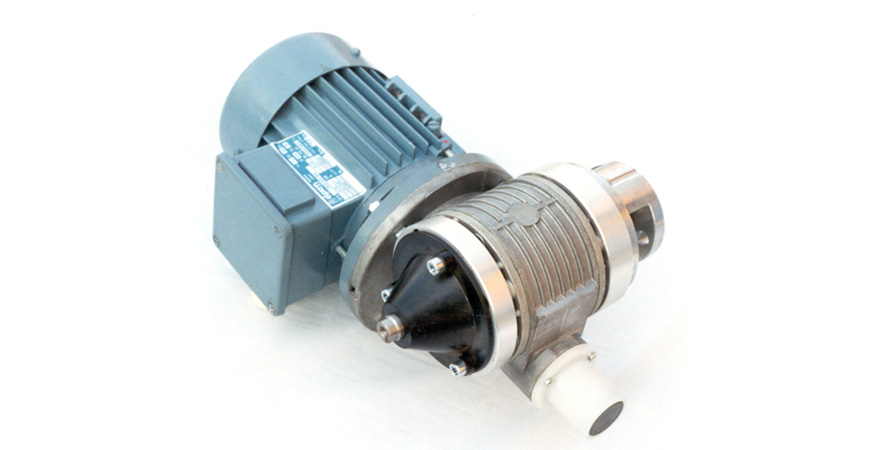

Gear Motor Actuator 1
AE-type Electric Gear Motor Actuators are suitable for 90° opening and closing of WAM Butterfly Valves and VSS-type Ball Segment Valves.

AE actuators come with splined shaft coupling bushes according to DIN 5482 standards.
Swivel action makes limit switches (MIC 23 or LSM 0) obligatory.

Benefits
  • Sturdy, compact design
  • Interchangeable with other WAM Actuators
  • Durable
  • Matchless cost effectiveness due to mass production CV-type emergency hand wheel (refer to specific page).

Options & Accessories
  • ATEX-version available
  • Equipped with the additional CV emergency hand wheel, AE-type Gear Motor Actuators can be operated without power supply.



Technical Specs

Solutions

Solutions by Technology


Multimedia

Valve Actuators

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

ACTUATORS_0321_EN_EDIT.pdf
Latest edition: June 2021
English
Code: 203001736
ACTUATORS_0415_EDIT.pdf
Issue : 04/15
Latest edition: April 2015
French, German, Italian
Code: 063001410
ACTUATORS_RU_0912_EDIT.pdf
Latest edition: September 2012
Russian
Code:
ACTUATORS_Wam_Inc_1213_EDIT.pdf
Latest edition: December 2013
American english
Code:
