Heavy-Duty Vertical Conveying EHN

Approved Heavy-Duty Design

Introduction

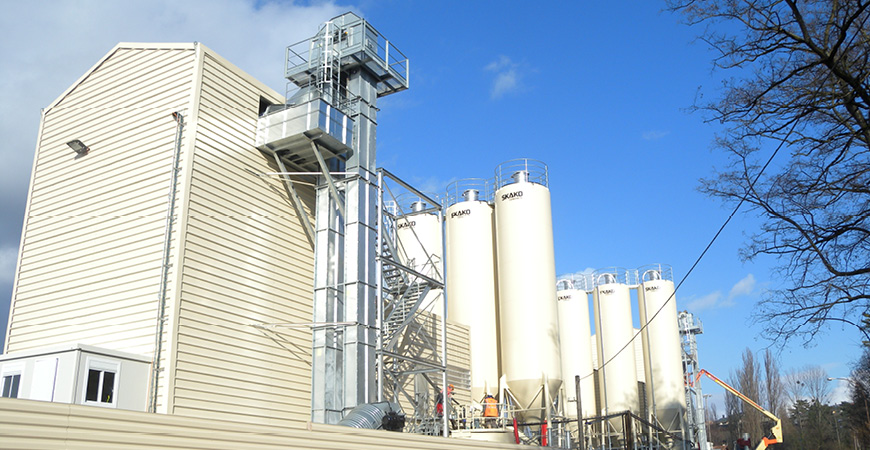

Heavy-Duty Vertical Conveying 1

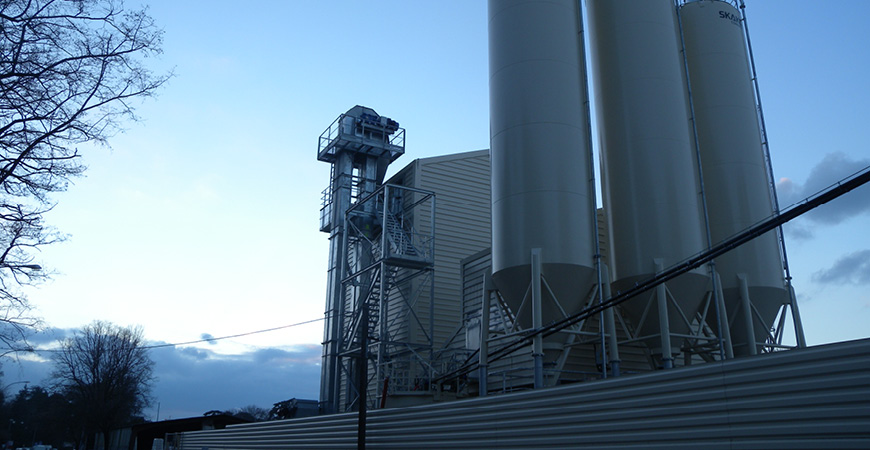

Heavy-Duty Vertical Conveying 2

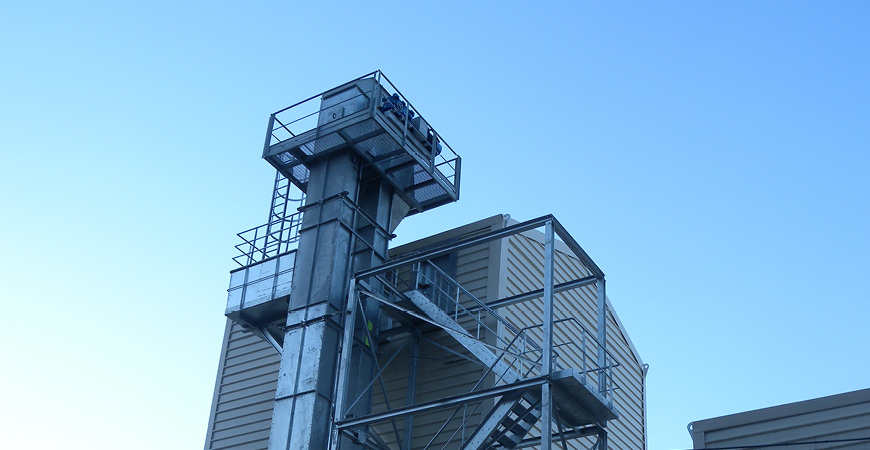

Heavy-Duty Vertical Conveying 3
EHN-type Bucket Elevators are specialised for vertical elevation of aggregates and minerals in continuous heavy-duty applications. They are especially designed to operate at low speed and are manufactured from standardised modular components.
High capacity vertical conveying
High capacity vertical conveying
Extra heavy-duty design
Extra heavy-duty design
Highly reliable and durable
Highly reliable and durable

Technical Specs

Description

EHN-type Bucket Elevators are specialized for vertical elevation of aggregates and minerals in continuous heavy-duty applications. They are designed to operate at low speed and are manufactured from hot-galvanized carbon steel. The machines consist of a head and a foot section which include solidly mounted roller bearings as support for the bucket carrier belt, a variable number of trunkings, an intermediate trunking section for bucket assembly and inspection, along with all the other intermediate casings. Heavy-duty buckets manufactured from abrasion-resistant mild steel according to DIN15234 offer extended durability versus the highly abrasive materials handled.
The wide range of options and accessories enable a great variety of applications of EHN-type Bucket Elevators providing highly efficient state-of-the-art performance in compliance with the relevant standards.

Heavy-Duty Vertical Conveying

Function

EHN-type Bucket Elevators are used for vertical elevation of aggregates such as gravel, carbonate, lime, limestone, sand, minerals and similar materials dry, powdery, abrasive, non packing materials having particle size of up to 50 mm.
Material is introduced into a loading hopper which is included in the foot section. From there material is continuously picked up by appropriately shaped buckets which are fixed at an equal distance to an endless belt that rotates around a foot and a head roller wheel. The buckets are discharged through an outlet spout in the head section by centrifugal force after having passed the upper roller wheel. EHN Bucket Elevators are used in material handling and storage plants, as well as in different types of material processing plants.
EHN Bucket Elevators are used in handling and storage plants, concrete batching plants, cement mills, lime and gypsum factories, dry building material processing plants and asphalt plants.


Features

  • Throughput up to 310 m3/h (182 cfm)
  • Discharge height up to 60 metres (197 ft)
  • Surface treatment: hot dip galvanized
  • Direct gear motor
  • Inspection hatches on head and foot section
  • Rotation and belt misalignment sensors
  • ATEX versions on requests
  • Version completely in stainless steel on request

Benefits

  • High capacity vertical conveying
  • Extra heavy-duty design
  • Highly reliable and durable
  • Self-supporting

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
