Sludge Thickeners ISP

Introduction

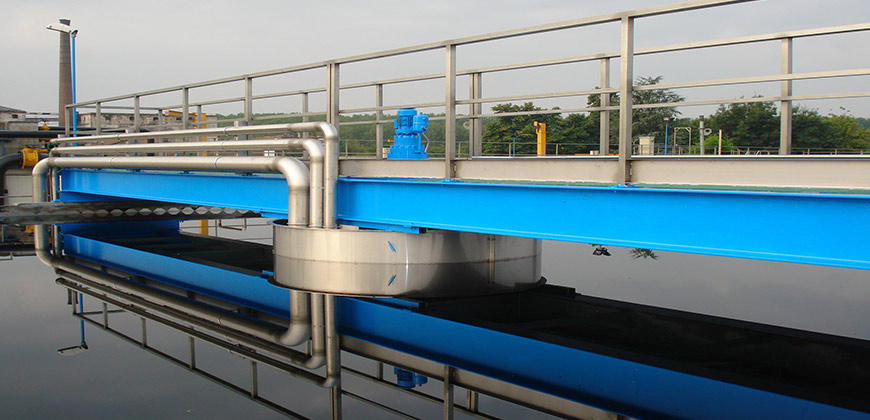

Sludge Thickeners 1

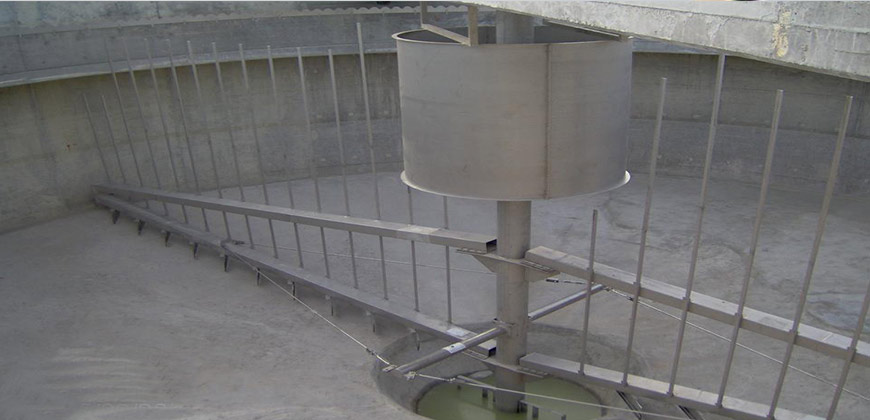

Sludge Thickeners 2

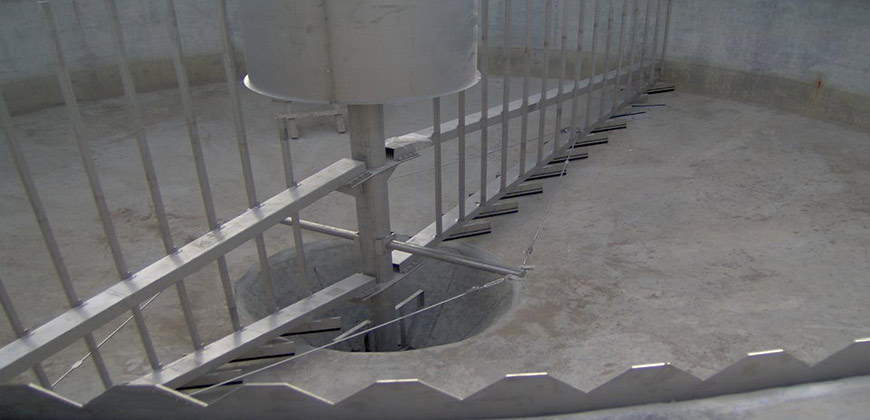

Sludge Thickeners 3
ISP Sludge Thickeners are used to thicken sludge in municipal and industrial waste water treatment plants.
Considerable reduction of water content
Considerable reduction of water content
Sturdy structure for long-term operation
Sturdy structure for long-term operation
Minimum energy consumption
Minimum energy consumption

Technical Specs

Description

ISP Sludge Thickeners are used to thicken sludge from settling tanks in both municipal and industrial purification plants.
Sludge Thickeners

Function

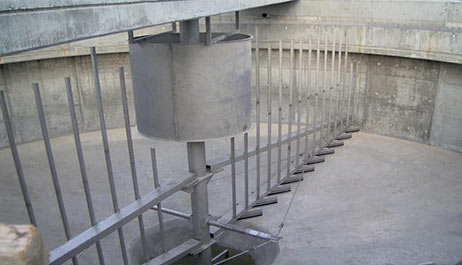

The ISP Sludge Thickener increases the concentration of the sludge due to its slow moving arms and vertical pickets. This also enables liberation of gas bubbles and aggregation of flakes of sludge.

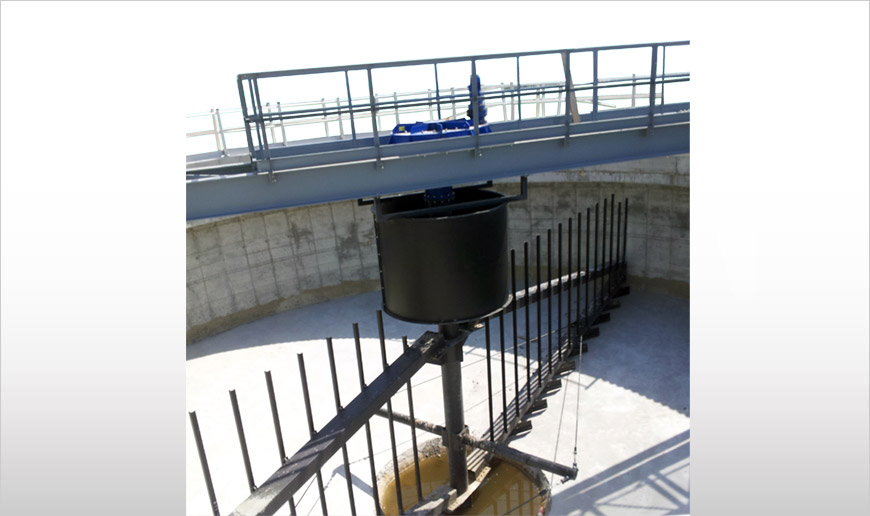

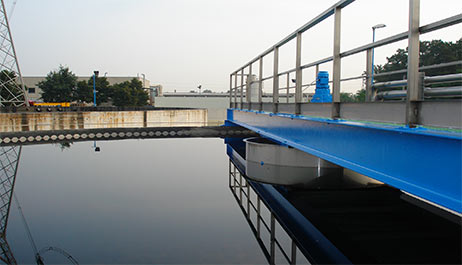

The system is installed inside a circular tank with a walkway made of concrete. It is mainly composed of a central drive shaft made of steel complete with flanges for connection to a movable trellis and to the scraper blades of the sludge drain well. Movable trellis are equipped with vertical pickets and bottom scraper blades. The central cylinder is used for the sewage intake. It is anchored to the concrete walkway.
The ISP Sludge Thickener is operated by a drive unit composed of an epicycloid oil bath gearbox. It is coupled to the drive shaft by means of a flange or, if the tank diameter is more than 12 m, by means of a central bearing.

Features

  • Available for up to 18m diameter tanks
  • Central bearing for units larger than 12m in diameter
  • Hot dip-galvanised carbon steel / 304 L / 316 L SS

Benefits

  • Quick installation
  • High efficiency in moisture content reduction
  • Easy installation even in existing tanks

Options

  • Alternative voltage and frequency
  • Alternative degree of motor protection
  • Control panel

Accessories

  • Electro-mechanical torque limit switch
  • Scum removal device
  • Walkway manufactured from hot dip-galvanised carbon steel / 304 L / 316 L SS

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

SAVECO_ISP_EN_0418_EDIT.pdf
Latest edition: April 2018
English
Code:
SAVECO_ISP_IT_0418_EDIT.pdf
Latest edition: April 2018
Italian
Code:
ISP_FR_0418.pdf
Latest edition: March 2019
French
Code: 203001368
SAVECO_ISP_RU_0418_EDIT.pdf
Latest edition: March 2019
Russian
Code: 203001565
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
