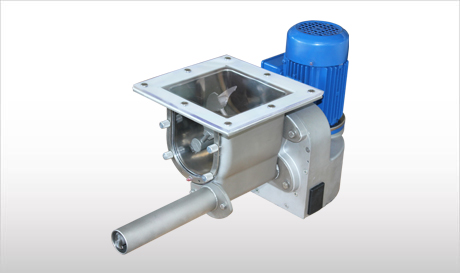

High Efficiency Micro-batch Feeders MBH

The most versatile and economic solution in bulk solids feeding and metering

Introduction

High Efficiency Micro-batch Feeders 1

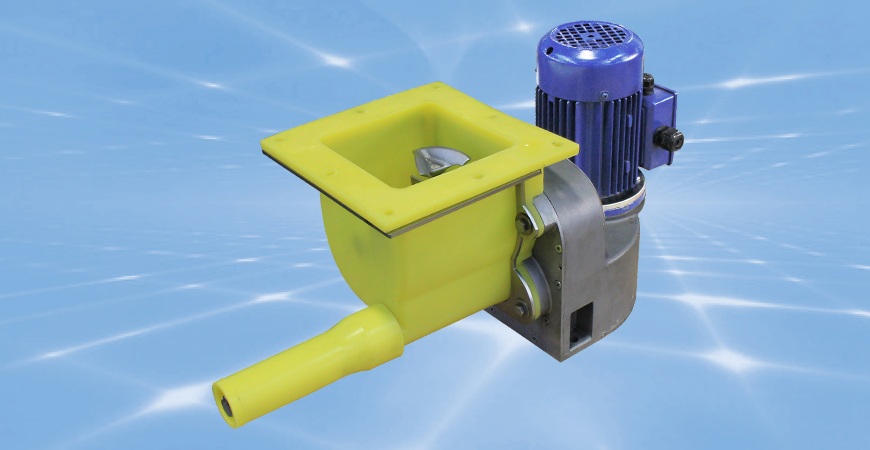

High Efficiency Micro-batch Feeders 2

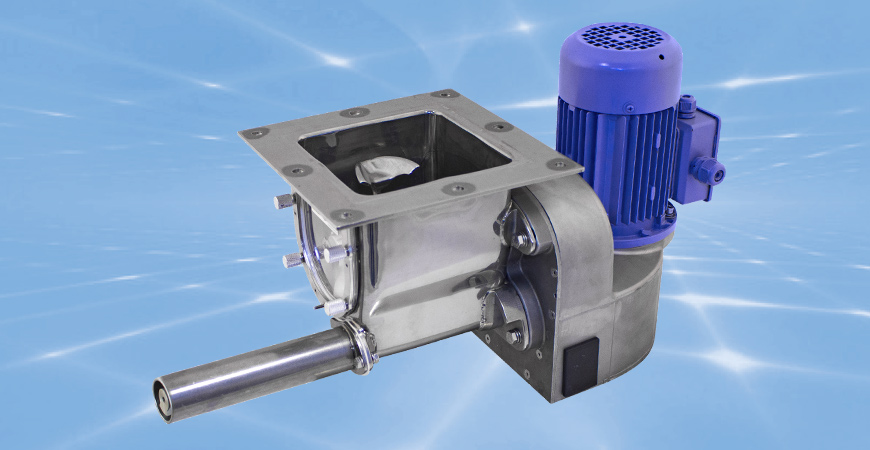

High Efficiency Micro-batch Feeders 3
MBH is the most versatile and economic solution for high efficiency micro-batch feeding. It is available in 3 different versions (standard in 316 SS,  with SINT™ engineering polymer chamber and feeder pipe and a version for Food applications with ATEX and EC 1935/2004 certification).


Technical Specs

Description

The MBH Micro-batch Feeder for continuous volumetric feeding of powdery or granular
materials consists of a body entirely manufactured from 316 stainless steel or SINT™ engineering polymer, a horizontally mounted rotating blending tool, a feeder screw beneath the blending tool, a feeder pipe enclosing the protruding feeder screw, as well as a drive unit.
High Efficiency Micro-batch Feeders

Function

Featuring multiple patent pending components, MBH is an high efficiency Micro-batch Feeder for continuous volumetric feeding of powdery or granular materials. High performance MBH Micro-batch Feeders have been successfully operating in the following bulk handling industries: food, building, plastics, chemicals, packaging and environmental technology.

Features

  • Sturdy, compact system with contact surfaces manufactured from selected materials
  • Interchangeablity of standard components and accessories within the WAM® feeder range
  • Easy removal of parts in contact with the product
  • Lubrication-free gear reduction unit completely detachable from body Discharge valve to intercept material flow
  • Seamless Internal Chamber Design with Transparent Inspection Hatch
  • Quick Coupling Metering Tools (2 extra feeder tools included as standard)

Benefits

  • Minimum residue
  • Low energy consumption
  • High metering accuracy
  • Easy cleaning due to ergonomic design

Options

  • with SINT™ engineering polymer chamber and feeder pipe
  • Food-grade model with ATEX and EC 1935/2004 certification

Accessories

  • Scale
  • Vertical feeder outlet with or without closure
  • Feed hoppers with or without internal blending tool

Solutions

Solutions by Technology


Multimedia

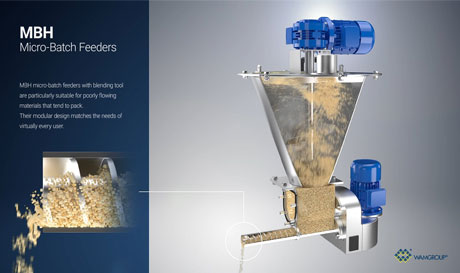

High Efficiency Micro-batch Feeders 0
MBH 3d animation

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

MBH_0321_EN_EDIT.pdf
Latest edition: January 0001
English
Code: 203001742
MBH_0521_DE_EDIT.pdf
Latest edition: May 2021
German
Code: 203001242
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
