Trough Screw Conveyors for Flour Mills MSC

Designed for flour mills

Introduction

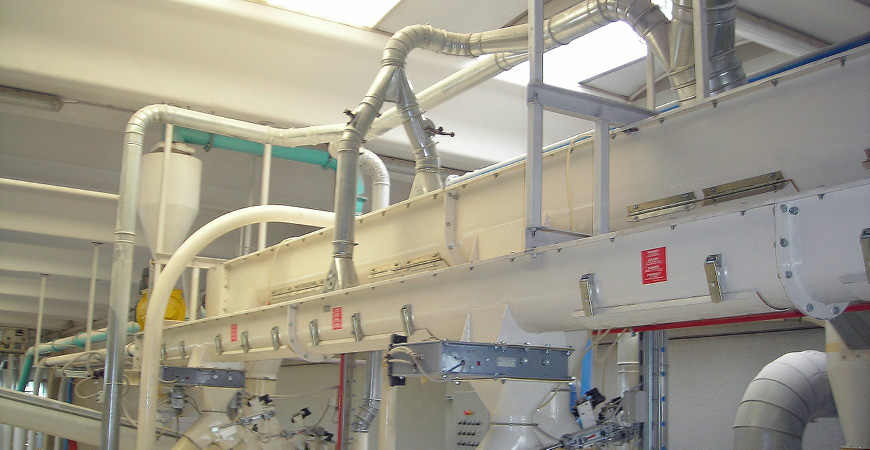

Trough Screw Conveyors for Flour Mills 1
Trough Screw Conveyors for Flour Mills 2
Trough Screw Conveyors for Flour Mills 3
MSC Trough Screw Conveyors are designed for handling powdery or granular materials in flour mills. Their design, their special finishing grade, and the vast range of options and accessories take the requirements of the flour milling industry into particular consideration.

Short delivery time due to modular design and availability of all components
Short delivery time due to modular design and availability of all components
Industrial quality design
Industrial quality design
Perfectly matching spare parts
Perfectly matching spare parts

Technical Specs

Description

MSC Trough Screw Conveyors are a specialised version of the CA modular trough screw conveyor system. They are used in the flour milling industry, especially for conveying cereal grains, flour, and by-products such as bran. MSC Screw Conveyors are manufactured from carbon steel with food-grade surface finishing. They are made up of a U-shape trough equipped with at least one outlet spout, an end plate at each trough end, helicoid screw flighting welded on a centre pipe with coupling bush at each end, two end bearing assemblies complete with shaft seal, a number of intermediate hanger bearings with self-lubricating bushes depending on the overall length of the screw conveyor, as well as bolted trough covers. Furthermore, MSC Trough Screw Conveyors are equipped with a gear motor that suits the application.
MSC Trough Screw Conveyors come in a light-duty design only and they are available with ATEX, Zone 22 certification.
Trough Screw Conveyors for Flour Mills

Function

MSC Trough Screw Conveyors are designed for handling powdery or granular materials in flour mills. Their design, their special finishing grade, and the vast range of options and accessories take the requirements of the flour milling industry into particular consideration.


Features

  • Light-duty trough in modular flanged sections manufactured from carbon steel
  • Light-duty helicoid flighting welded on centre pipe manufactured from carbon steel
  • Powder-coated
  • Square or rectangular inlet and outlet spouts with integrated drilled WAM standard flanges
  • Robust cast iron body flanged end bearing assemblies with external bearings and manually adjustable packed gland seals
  • Maintenance-free intermediate cast hanger bearings with self-lubricating slide bushes
  • Splined or bolted shaft couplings
  • Direct drive in a compact version, or with coupling transmission, or with chain or belt transmission
  • Food-grade finishing and surface painting

Benefits

  • Short delivery time due to modular design and availability of all components
  • Perfectly matching spare parts
  • Industrial quality design

Options

  • Twin or multiple shaft screw conveyors
  • Additional inlets and outlets
  • Trough feet
  • Overflow hatches
  • Drop bottom troughs
  • Tubular trough inserts
  • Trough covers with spring locks
  • Variable pitch or paddle type screws
  • Internal food-grade painting

MSC TROUGH SCREW CONVEYORS ARE AVAILABLE WITH ATEX, ZONE 22 CERTIFICATION

Solutions

Solutions by Industry

Feed & Food

Solutions by Technology


Multimedia

CA MSC

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

MSC_0912_EDIT.pdf
Latest edition: September 2012
English, French, German, Italian
Code: WAM.01040

Application Datasheets

DS_FlourMilling_MSC_0115_ENG.pdf
Latest edition: January 2015
English
Code:
