Rotary Roller Vibrators OR

Introduction

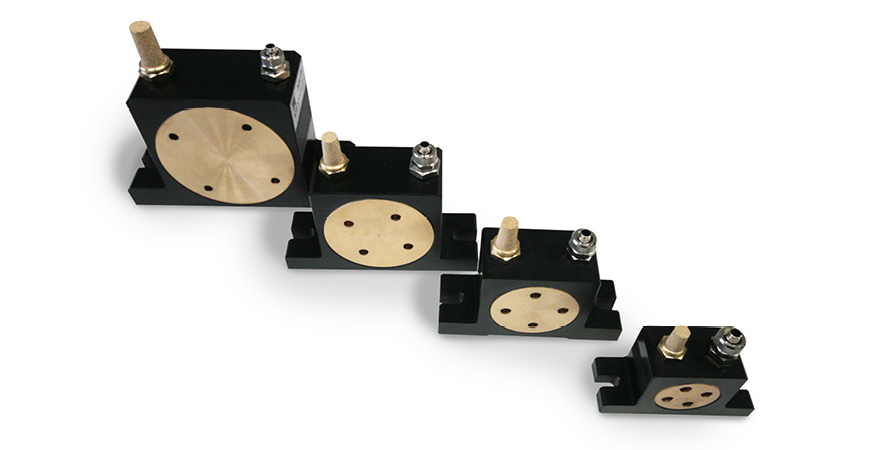

Rotary Roller Vibrators  1
With OR-series Roller Vibrators vibration is generated by the movement of rollers inside an eccentric guide. OR generate low amplitude and high frequency vibration. Among others, they are suitable for concrete compacting tables, foundry moulds and hopper emptying due to higher force generated than by ball-type S-series vibrators.
The OR-series, which comes with a black aluminium casing and brass cover, is available in four different sizes.
Operating with oiled air at 2 to 6 bar (29 ~ 87 PSI), the OR-series is suitable for application in explosive environments (ATEX EX II 2DG cT(x)). Operating noise reaches 90 dB(A).

Benefits

  • High centrifugal force
  • Easy installation
  • Suitable for high temperatures

Technical Specs

Solutions

Multimedia

Download
