Central Traction Clarifiers PTC

Introduction

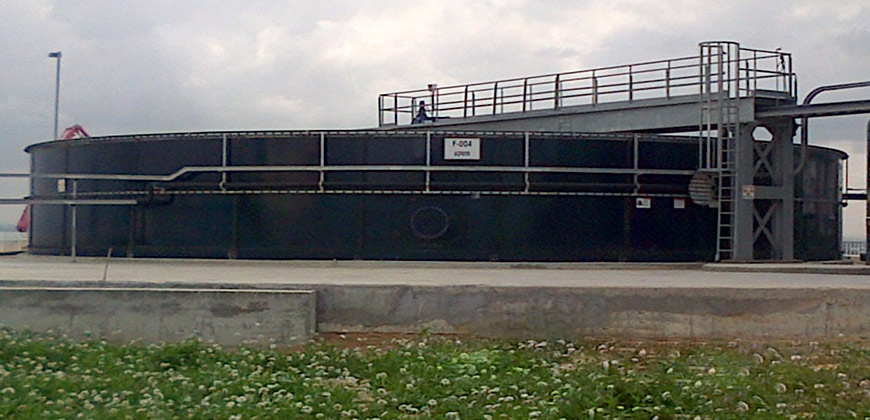

Central Traction Clarifiers 1

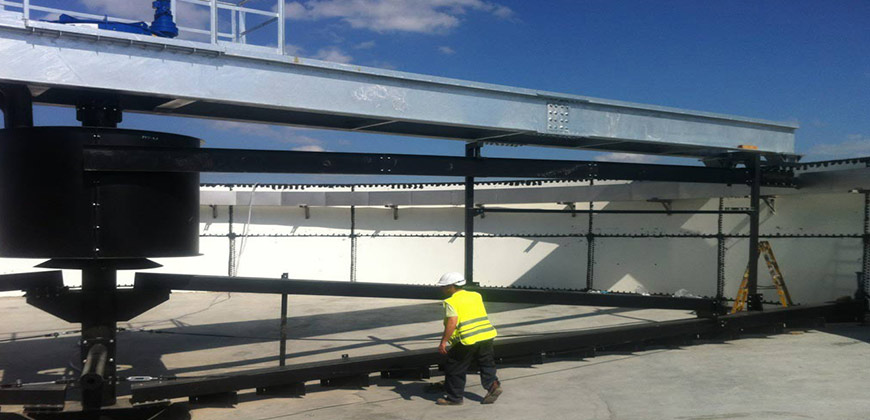

Central Traction Clarifiers 2

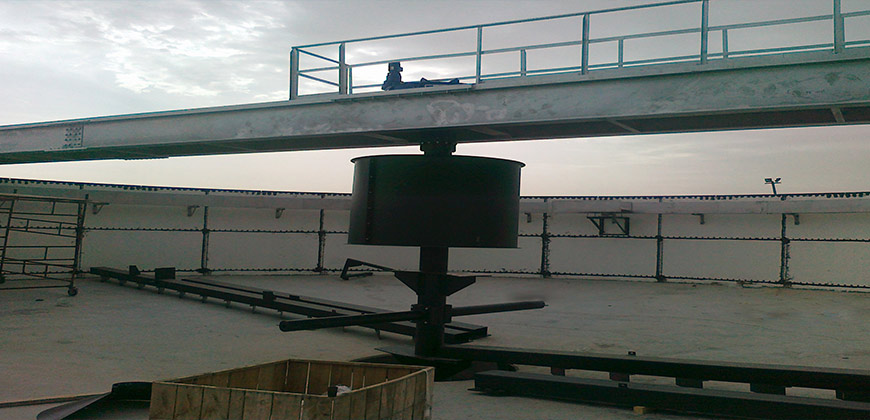

Central Traction Clarifiers 3

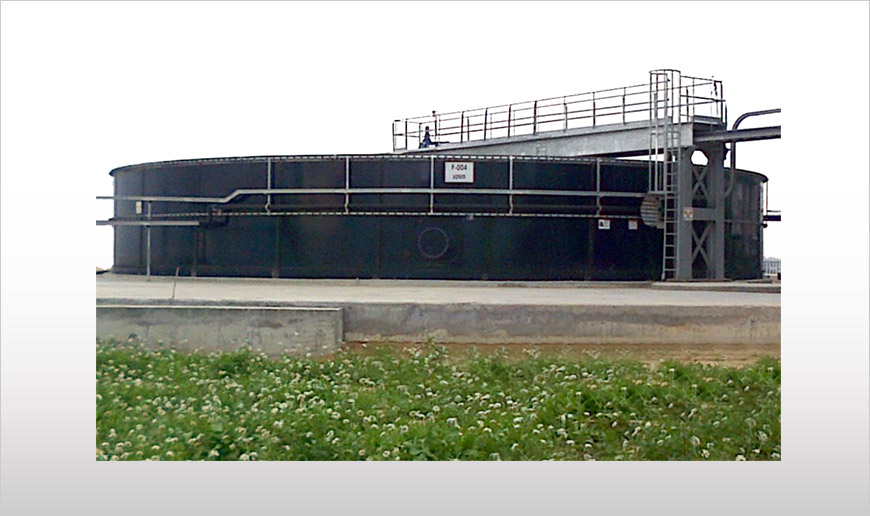

PTC Central Traction Bridges are used to remove biological sludge in circular primary and secondary settling tanks in both municipal and industrial waste water treatment plants.
High efficiency in removing biological sludge
High efficiency in removing biological sludge
Quick installation
Quick installation
Low cost maintenance
Low cost maintenance

Technical Specs

Description

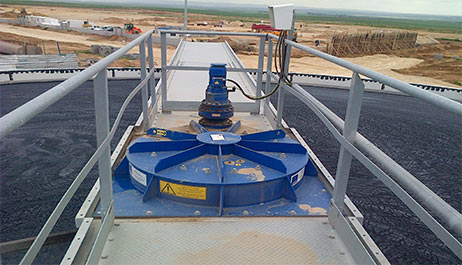

PTC Central Traction Clarifiers are used to remove biological sludge in circular primary and secondary settlement tanks in both municipal and industrial purification plants. They consist of a central drive shaft complete with flanges for the connection to the drive unit and to the scraper blades. Both walkway and tank are made of concrete.
Central Traction Clarifiers

Function

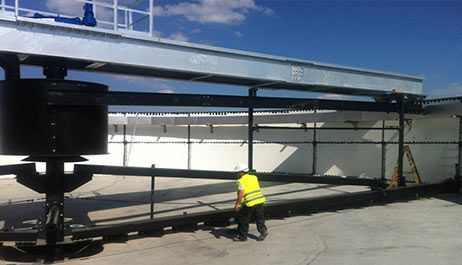

Waste water enters the concrete tank through a central cylinder which spreads the liquid. Sludge settles on the tank bottom. The slowly moving truck makes the bottom scrapers convey the settled sludge into a central sum pit.
Clean water flows into the peripheral launder through Thomson profile weirs. The launder is installed inside the tank.

Features

  • Available for tanks of up to 18m in diameter
  • Central bearing for units larger than 14m in diameter
  • Hot dip-galvanised carbon steel / 304 L / 316 L SS

Benefits

  • Quick installation
  • High efficiency
  • Easy installation also into existing tanks

Options

  • Alternative voltage and frequency
  • Alternative degree of motor protection
  • Control panel

Accessories

  • Electric torque limit switch
  • Scum removal device
  • Walkway in hot dip-galvanised carbon steel / 304 L / 316 L SS

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

SAVECO_PTC_EN_0418_EDIT.pdf
Latest edition: April 2018
English
Code:
SAVECO_PTC_IT_0418_EDIT.pdf
Latest edition: April 2018
Italian
Code:
PTC_FR_0418.pdf
Latest edition: March 2019
French
Code: 203001370
SAVECO_PTC_RU_0418_EDIT.pdf
Latest edition: March 2019
Russian
Code: 203001579
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
