Filler Dust Screw Feeders & Conveyors THF-TCF

Specialised for handling filler dust in asphalt plants

Introduction

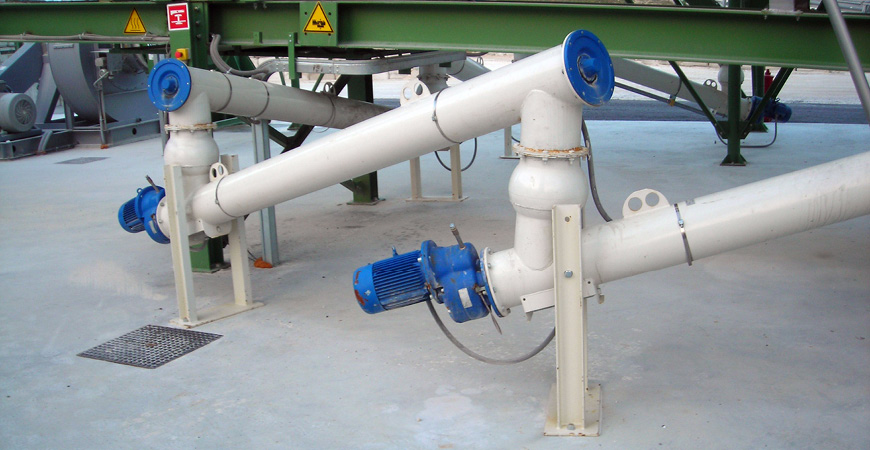

Filler Dust Screw Feeders & Conveyors 1

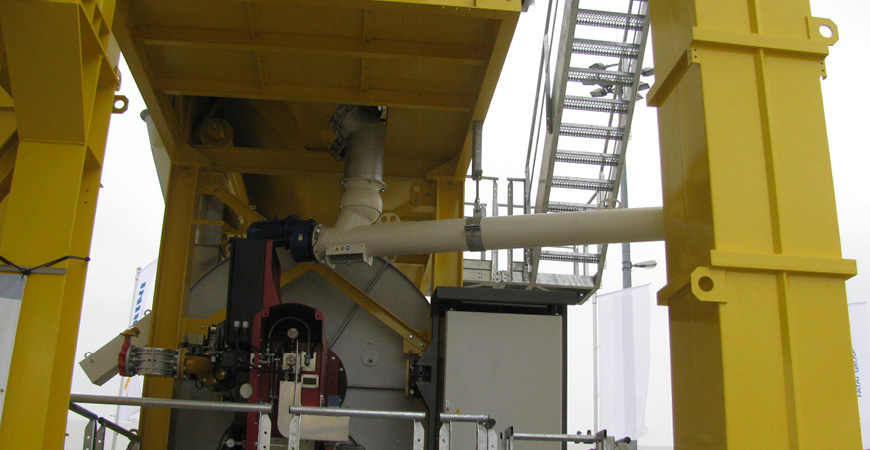

Filler Dust Screw Feeders & Conveyors 2

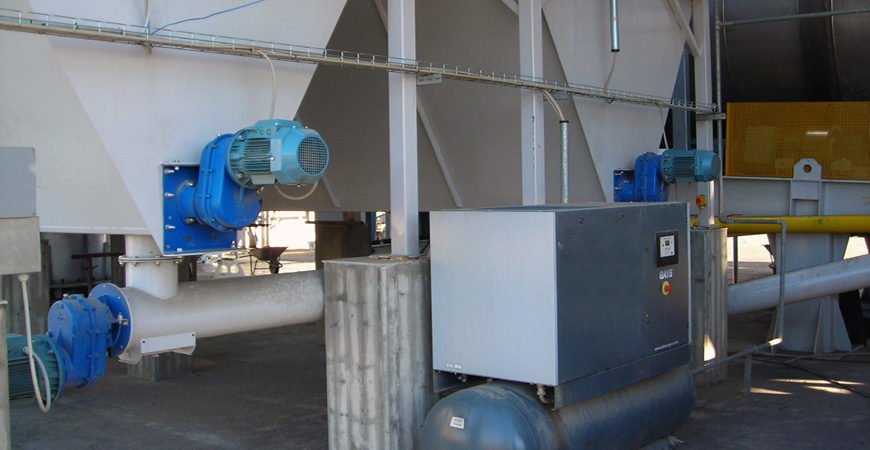

Filler Dust Screw Feeders & Conveyors 3
THF / TCF Screw Feeders and Conveyors for Filler Dust are designed to match the main requirements of the asphalt industry in feeding and conveying both hot and cold filler dust in stationary asphalt plants, at one end from the central dust filter and at the other end from the storage silos to the weigh hopper of the mixing plant.

Reduced overall dimensions
Reduced overall dimensions
Maintenance-friendly design
Maintenance-friendly design
All components for standard configuration available from stock
All components for standard configuration available from stock

Technical Specs

Description

The THF / TCF Screw Feeder and Conveyor range for Filler Dust is a specialised product line for the Asphalt Mixing industry.
THF / TCF Filler Dust Screw Feeders and Conveyors are highly versatile offering numerous solutions for feeding or conveying fine, dusty powders. THF / TCF are manufactured from carbon steel with a suitable surface finishing. They are made up from a tubular trough equipped with at least one inlet and outlet spout, a welded flange at each tube end, helicoid screw flighting welded on a centre pipe with a coupling bush at each end, two end bearing assemblies complete with self-adjusting shaft seal suitable for filler dust. This type of screw, which comes without intermediate bearings, is equipped with a gear motor that suits the application.

Filler Dust Screw Feeders & Conveyors

Function

THF / TCF Screw Feeders and Conveyors for Filler Dust are designed to match the main requirements of the asphalt industry in feeding and conveying both hot and cold filler dust in stationary asphalt plants, at one end from the central dust filter and at the other end from the storage silos to the weigh hopper of the mixing plant. Wide spans are reached in a piggyback configuration. Thanks to the modular structure of the screws, various solutions are possible in terms of performance and component configuration.


Features

  • High performance in feeding and conveying
  • High-efficiency WAM power transmissions
  • Chain coupling power transmission where needed
  • Greased seals for hot/cold filler dust
  • Universal inlet/outlet spouts with optimised height measurement
  • Absence of intermediate bearings
  • Piggyback configuration

Benefits

  • Reduced overall dimensions
  • Easy assembly
  • Maintenance-friendly design
  • All components for standard configuration available from stock

Options

  • Connecting flanges
  • Adjustable pipe clamp supports

Solutions

Solutions by Industry

Building & Construction

Solutions by Technology


Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

THF-TCF_EN_0714_EDIT.pdf
Latest edition: July 2014
English
Code: 203001091

Application Datasheets

DS_Asphalt_TCF_1214_ENG.pdf
Latest edition: December 2014
English
Code:
DS_Asphalt_THF_1214_ENG.pdf
Latest edition: December 2014
English
Code:
