Trough Screw Conveyors for Animal By-Products CLO-CLOS

Robust and reliable
Introduction Technical Specs Solutions Multimedia Download Suggested products

Introduction

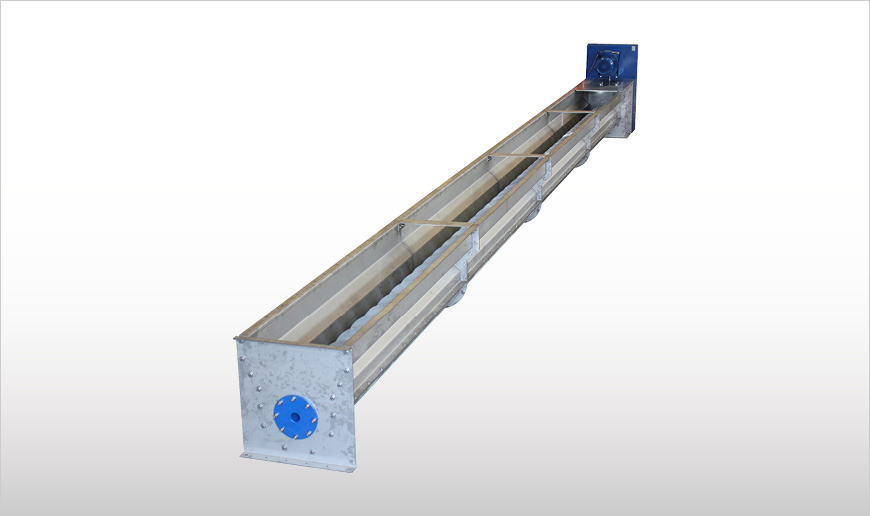

Trough Screw Conveyors for Animal By-Products 1

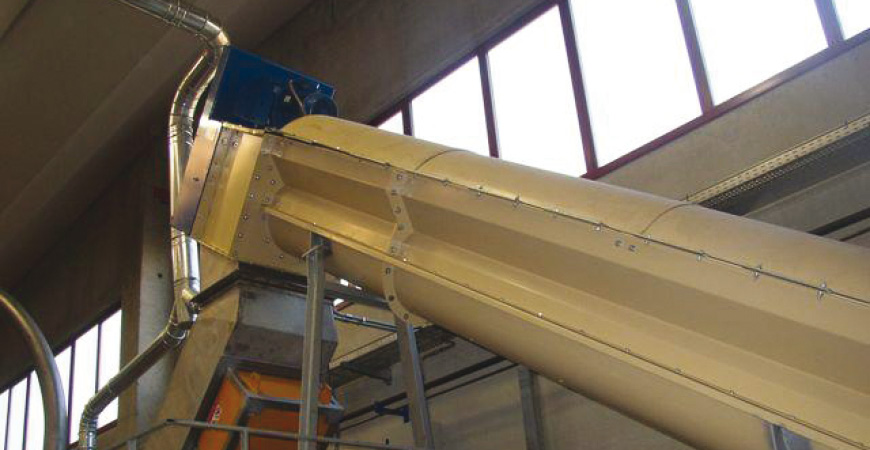

Trough Screw Conveyors for Animal By-Products 2

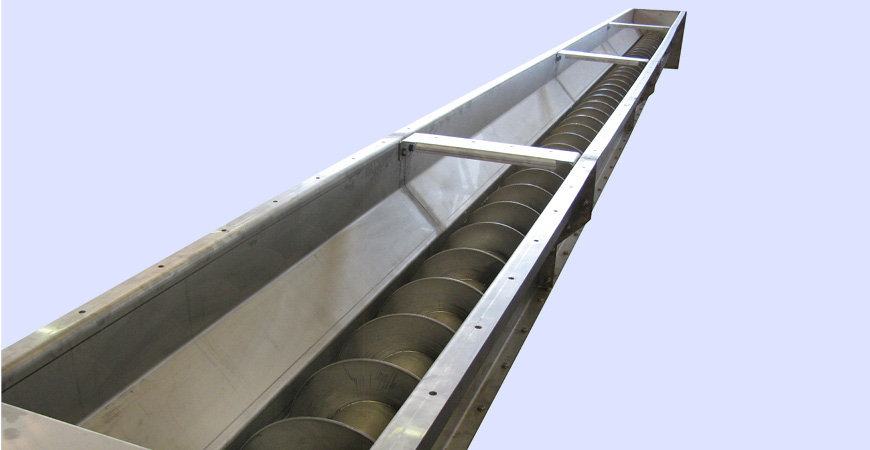

Trough Screw Conveyors for Animal By-Products 3
Designed for continuous operation, CLO and CLOS Trough Screw Conveyors are used for conveying slaughtering by-products such as bones (entire or ground), hooves, heads or fat.

Particularly maintenance-friendly
Particularly maintenance-friendly
Industrial quality design
Industrial quality design
Special trough cross section preventing material overload
Special trough cross section preventing material overload

Technical Specs

Description

Extra heavy-duty CLO and CLOS Trough Screw Conveyors are manufactured from carbon steel with suitable surface finishing (in general hot galvanised fabricated parts). Depending on the application, CLO / CLOS consist of troughs having different shapes and configuration. They are equipped with an inlet and an outlet spout, an end plate at the drive end for fitting of an end bearing assembly, an end plate for trough closure at the opposite trough end, shaftless extra heavy-duty helicoid screw flighting flanged on the shaft of the only end bearing assembly. The screw slides on replaceable bars fixed on the trough bottom. The shearing effect between screw and bottom bars generated during conveying helps shredding fibrous materials. Furthermore, CLO / CLOS Screw Conveyors are equipped with a gear motor appropriate for the application.
Trough Screw Conveyors for Animal By-Products

Function

Designed for continuous operation, CLO / CLOS Trough Screw Conveyors are used for conveying slaughtering by-products such as bones (entire or ground), hooves, heads or fat.

Features

  • Modular troughs and side channels with different cross section profiles

Benefits

  • Special trough cross section preventing material overload
  • Particularly maintenance-friendly
  • Industrial quality design

Options

  • Different types of end bearing assemblies including shaft seals
  • Flush outlet
  • Bolted trough cover modules (end module with integrated inlet spout)
  • Different types of trough liner
  • Inspection and overflow hatches
  • Conveyor drainage system
  • Trough feet
  • Washing nozzles

Solutions

Solutions by Industry

Environmental Technology

Industrial WWT (incl. Sludge Treatment)
Industrial WWT (incl. Sludge Treatment)
Abattoirs (Slaughterhouses)
Abattoirs (Slaughterhouses)

Solutions by Technology


Bulk Solids Conveying
Bulk Solids Conveying

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

HOPPERTOP_EN_0912_EDIT.pdf
Latest edition: September 2012
English
Code: 063001443
Other languages
HOPPERTOP_0912_DE_EDIT.pdf
Issue : -
Latest edition: April 2010
German
Code: -
