Sub-vertical Mechanical Bar Screens GVB

Introduction

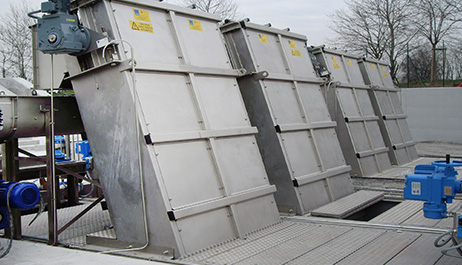

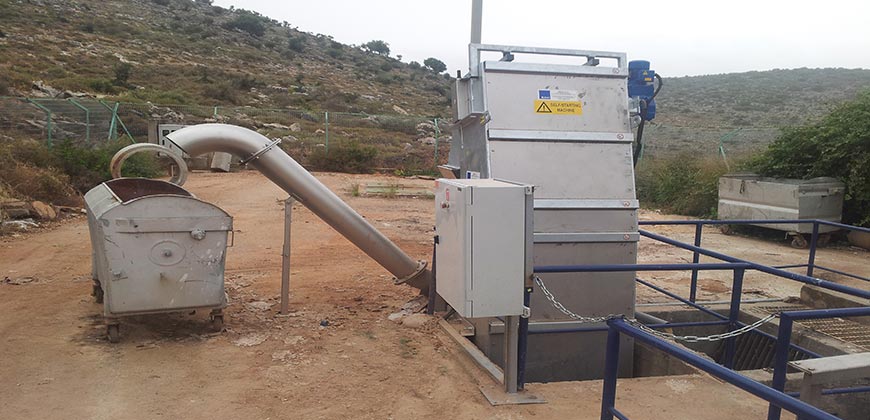

Sub-vertical Mechanical Bar Screens 1

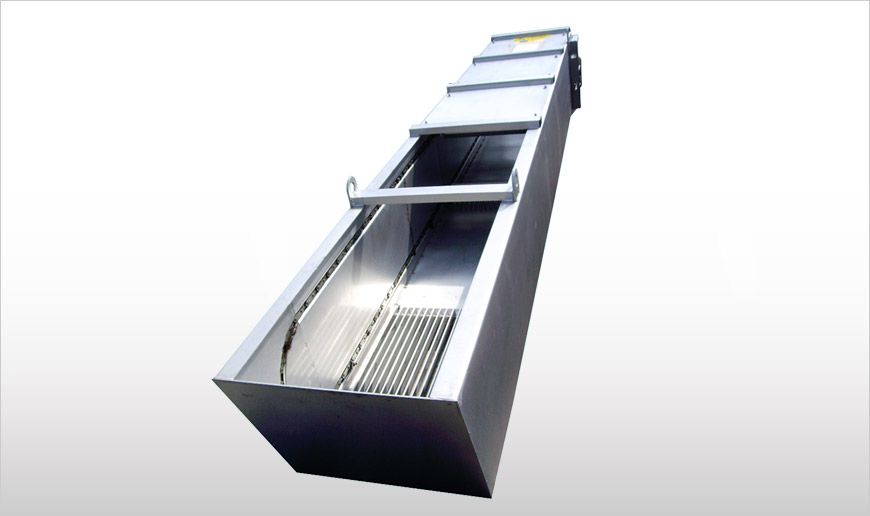

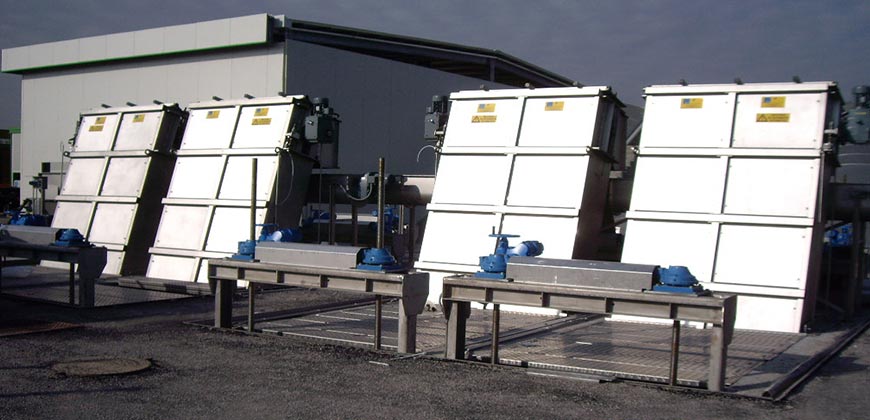

Sub-vertical Mechanical Bar Screens 2

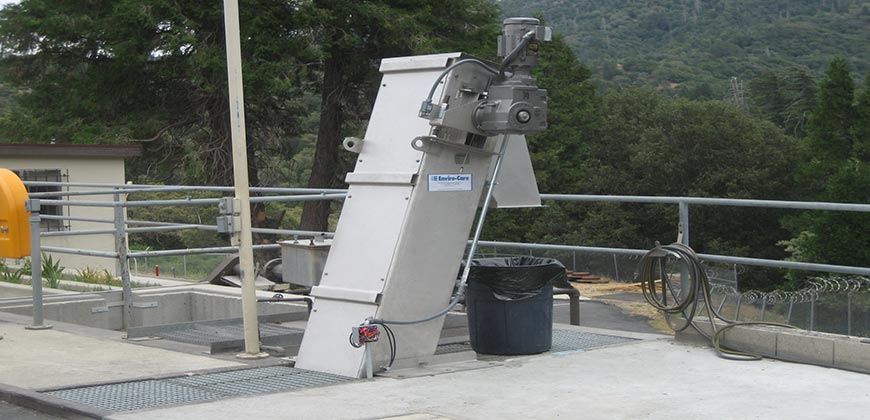

Sub-vertical Mechanical Bar Screens 3

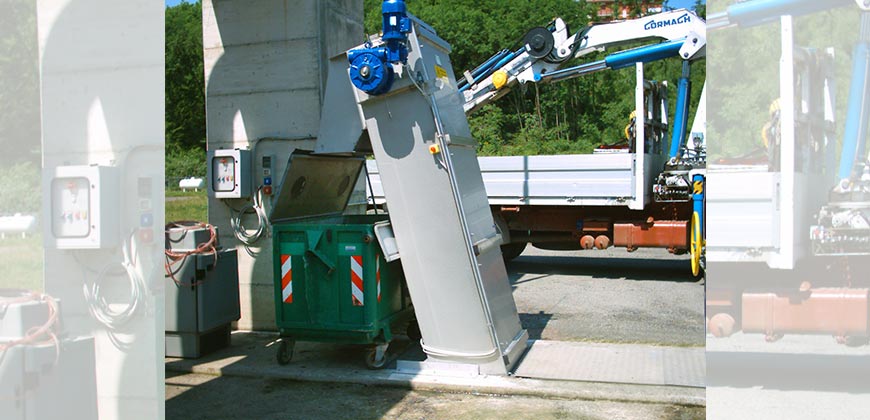

Sub-vertical Mechanical Bar Screens 4
GVB-series Sub-Vertical Mechanical Bar Screens are used for coarse screening in both municipal and industrial waste water plants.
Robust design
Robust design
Installation in very deep channels
Installation in very deep channels
Low maintenance costs
Low maintenance costs

Technical Specs

Description

GVB Mechanical Screens consist of a robust steel frame and a bar filter, varying according to the screening efficiency required.
GVB screens are used for coarse screening in both municipal and industrial waste water plants.
Sub-vertical Mechanical Bar Screens

Function

Waste water flows into the upstream end of the unit where screenings is captured on the bars.
Chain-driven rakes clean the bars, conveying at the same time the solids to the discharge point.
There material is removed from the rakes by a wiper and discharged into a dumpster, conveyor or compactor.

Features

  • > 12mm ~ 50mm spacing
  • 2 or more cleaning rakes ensuring quick, efficient solids removal
  • Channel width: 400 ~ 2,000 mm
  • 75-degree incline angle

Benefits

  • Precision laser-cut raking tines cut from single stainless steel bar
  • Recessed guide channels for drive chains reducing chain exposure to screenings
  • Lower chain guide with no moving parts
  • No lower sprocket nor bearings
  • Reduced service requirements (no need to take screen out of channel)

Options

  • Alternative screen types and sizes
  • Material: hot dip galvanised steel, 304 L / 316 L SS
  • Incline angle other than 75 degrees up to 90 degrees with goose neck
  • Alternative voltage and frequency
  • Alternative degree of motor protection
  • Control panel

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

SAVECO_GVB_EN_0418_EDIT.pdf
Latest edition: April 2018
English
Code:
SAVECO_GVB_IT_0418_EDIT.pdf
Latest edition: April 2018
Italian
Code:
GVB_FR_0418.pdf
Latest edition: March 2019
French
Code: 203001364
SAVECO_GVB_RU_0418_EDIT.pdf
Latest edition: March 2019
Russian
Code: 203001555
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
