FLEXFLO Micro-Batch Feeders MBW

For feeding of free or moderately flowing materials

Introduction

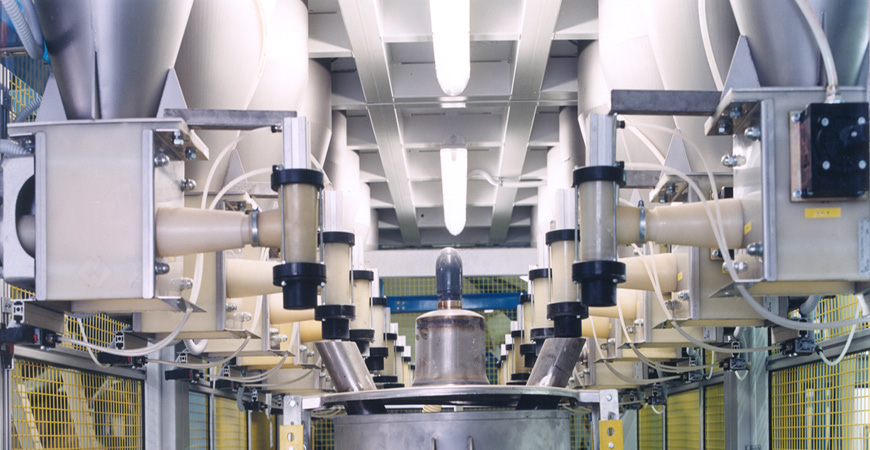

FLEXFLO Micro-Batch Feeders 1

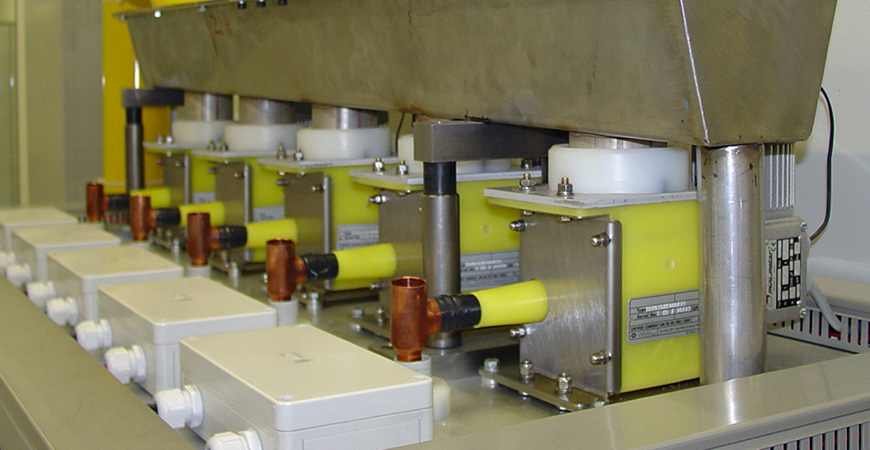

FLEXFLO Micro-Batch Feeders 2

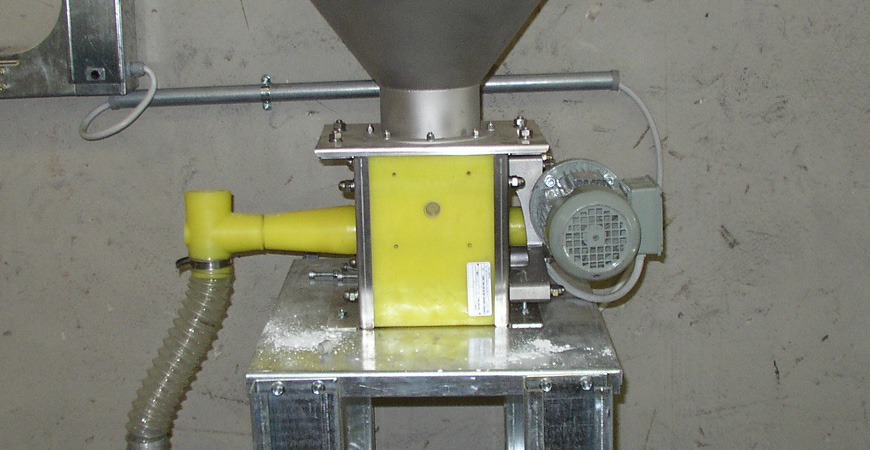

FLEXFLO Micro-Batch Feeders 3
MBW Micro-Batch Feeders are particularly suitable for feeding free or moderately flowing materials which do not tend to pack under pressure in a variety of industries, among which plastics processing, animal feed milling, as well as waste water and drinking water treatment.

Reliable and durable
Reliable and durable
Highly accurate
Highly accurate
Excellent price-quality ratio
Excellent price-quality ratio

Technical Specs

Description

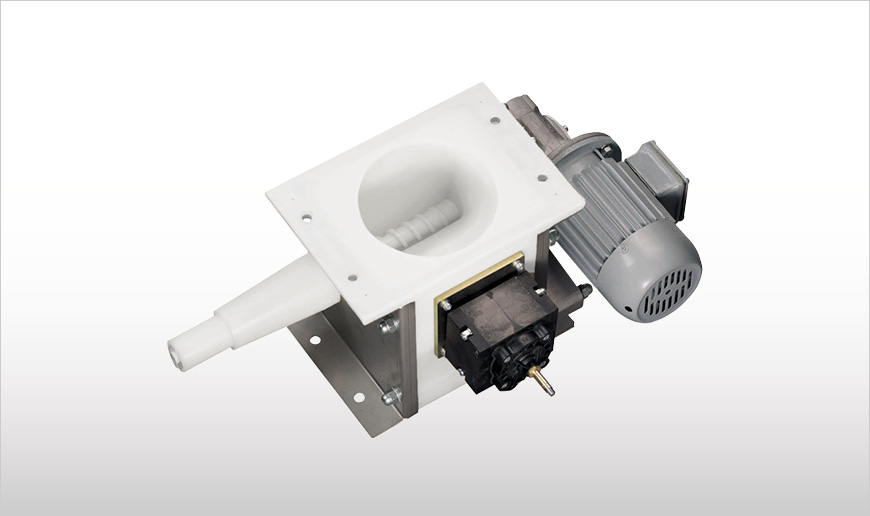

MBW Micro-Batch Feeders for continuous volumetric feeding of powdery or granular materials consist of a SINT engineering polymer FLEXFLO body with integrated feeder outlet pipe, a feeder screw and a drive unit.

FLEXFLO Micro-Batch Feeders

Function

MBW series Micro-Batch Feeders for powder and granular material feeding are particularly suitable for free flowing and moderately flowing materials which do not tend to pack under pressure.
Fed via a bag opening hopper, a bulk bag discharger, or another feeding device, the SINT engineering polymer FLEXFLO body, with its particular geometry, ensures constant material flow and dosing through the feeder screw. To further facilitate material flow an additional pneumatic activator can be fitted on request.
Typically MBW Micro-Batch Feeders are used in plastics processing and animal feed milling, as well as in environmental technology in polyelectrolyte dosing systems.


Features

  • 3 sizes offering the following feed rates: 1.5 ~ 630 dm3/h (0.05 ~ 22 cfh)
  • SINT engineering polymer body manufactured from a casting process, complete with stainless steel end plates
  • Internal body geometry ensuring free material flow
  • Wide range of interchangeable SINT engineering polymer or stainless steel feeder tools
  • Minimum clearance between screw flight and feeder pipe
  • Cavity for injection of compressed air
  • High resistance to abrasion and corrosion
  • Vast range of interchangeable components

Benefits

  • Easy, quick cleaning due to non-stick engineering polymer surface
  • Comfortable maintenance due to small number of components
  • Cavity for injection of compressed air to improve self-cleaning
  • Minimum clearance between screw flight and feeder pipe ensuring high accuracy feeding
  • Excellent price-quality ratio

Options

  • Feeders manufactured from FDA and EN-approved, food-grade SINT engineering polymer
  • Vertical outlet
  • Pneumatic activator: supplies air through body cavity ensuring free movement of the walls and, therefore, unimpeded material flow inside the feeder (air flow can be controlled by solenoid valve or pneumatic pulse)

Multimedia

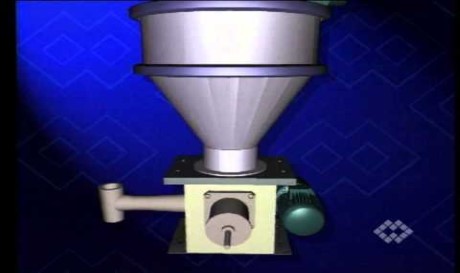

MBW - FLEXFLO Micro-Batch Feeders
MBW - Micro-Batch Feeder with material flow assisting FLEXFLO Trough

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

MBW_0321_EN_EDIT.pdf
Latest edition: June 2021
English
Code: 203001743
MBW_0912_EDIT.pdf
Latest edition: September 2012
French, German, Italian
Code: WAM.02520
