Introduction
MINIFILL ZM is the perfect choice where space is limited. The suction fan rate can be increased when operating with very fine dust due to a double bellows chute design.
Compact overall dimensions
Excellent dust-free material loading
Technical Specs
Description

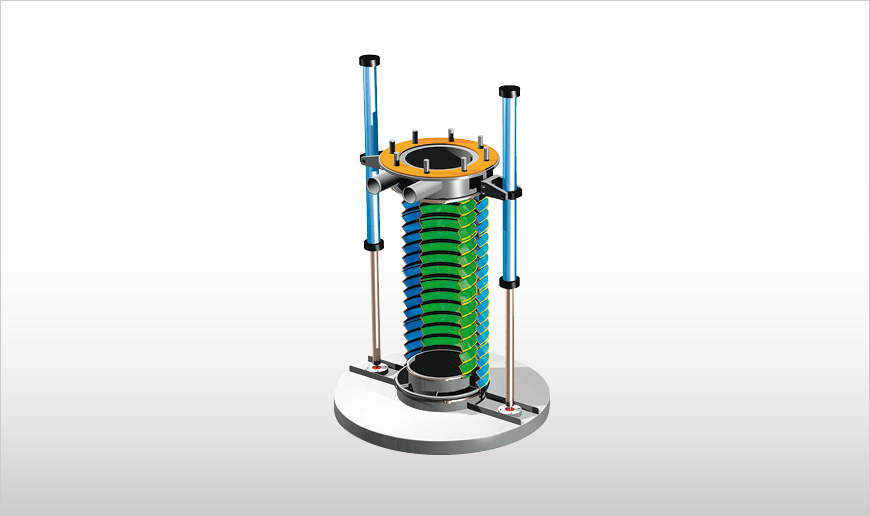

MINIFILL ZM Loading Bellows are suitable for dust-free loading of bulk solids into drums or IBCs.
Function
The compact overall dimensions of MINIFILL ZM make it the perfect choice where space is limited. Due to the double bellows chute design, the suction fan rate can be increased when operating with very fine dust. Two pneumatic cylinders power the unit.
Features
- Inlet diameter: 200 mm (12 in)
- Maximum throughput rate: 120 m3/h (70.6 cfm)
- Operating temperature: -15 ~ 120 °C (5 ~ 248 °F)
Benefits
- Compact overall dimensions
- Excellent dust-free material loading due to special bottom plate design
- Pneumatically operated
Options
- Various chute and fabrication materials available depending on the material handled.
