Live Bin Bottoms MU

Maintenance-friendly design features
Introduction Technical Specs Solutions Multimedia Download Suggested products

Introduction

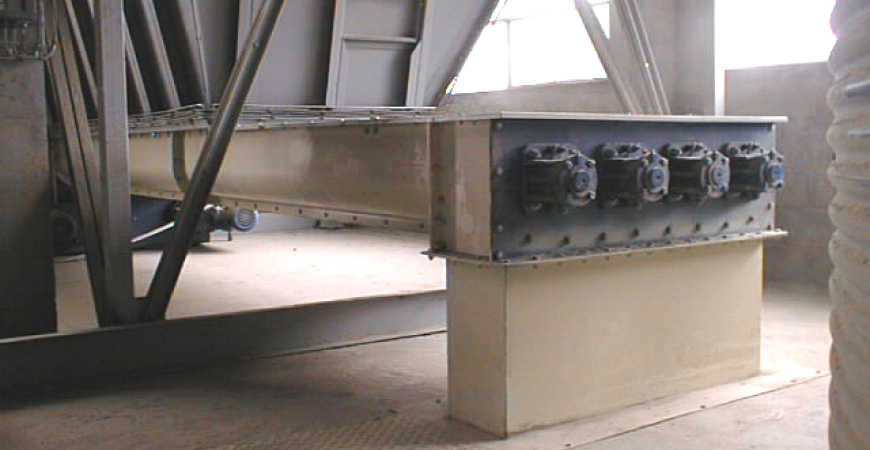

Live Bin Bottoms 1
Live Bin Bottoms 2
Live Bin Bottoms 3
MU Live Bin Bottoms are the ideal solution for discharging particularly difficult materials from polygonal hoppers or silos. Among others, they are used for extracting biological or industrial sludge, paper scrap, wood chippings, sawdust, as well as flour or bran in the flour milling industry.
Provides constant material extracting and feeding even with most difficult materials promoting mass flow
Provides constant material extracting and feeding even with most difficult materials promoting mass flow
Constant feed rates
Constant feed rates
Modular design enabling easy access and individual design features
Modular design enabling easy access and individual design features

Technical Specs

Description

MU Live Bin Bottoms (Multiple Screw Feeders) are equipped with a modular trough which encloses up to 6 shafted helicoid flight or paddle screws, externally flanged, fully protected end bearing assemblies complete with manually adjustable packing gland and shaft seal, a rectangular outlet spout covering the entire width of the bin bottom, bolted end plates, splined shaft couplings for medium heavy-duty, and flanged shaft couplings for the heavy-duty version.
Furthermore, MU Live Bin Bottoms are equipped with one gear motor per screw shaft or, depending on the application, with a drive unit driving more screws.
Live Bin Bottoms

Function

MU Live Bin Bottoms are used for discharging difficult materials from polygonal hoppers or silos. In particular, they are used for extracting biological or industrial sludge, paper scrap, wood chippings, sawdust, as well as flour or bran in the flour milling industry.

Features

  • Robust design
  • Screw diameter: 150 ~ 600 mm (6 ~ 24 in)
  • Up to six screws in one trough
  • Open trough length ranging from 1,500 to 4,000 mm (5 ~ 13 ft)
  • Trough housing and screws manufactured from carbon steel, stainless steel or SINT engineering polymer (screws only)
  • For certain applications screws and trough lining manufactured from SINT engineering polymer
  • Medium heavy-duty or extra heavy-duty helicoid flight screws or paddle screws
  • Medium heavy-duty or extra heavy-duty trough in modular flanged sections
  • Vertical outlet spout with rectangular cross section or open trough flush outlet both with integrated, drilled WAM standard flanges
  • Robust flanged cast iron end bearing assemblies with external bearings and manually adjustable packed gland seals
  • Splined shaft couplings (medium heavy-duty); flanged shaft couplings (extra heavy-duty)
  • Independent direct compact gear motor drive for each screw

Benefits

  • Promotes mass flow
  • Gives widest possible material extraction surface
  • Avoids bridging
  • Avoids segregation
  • Provides constant material extracting and feeding even with most difficult materials
  • Constant feed rates
  • Modular design enabling easy access and individual design features
  • High degree of self-cleaning
