Penstock PAR

Introduction

Penstock 1

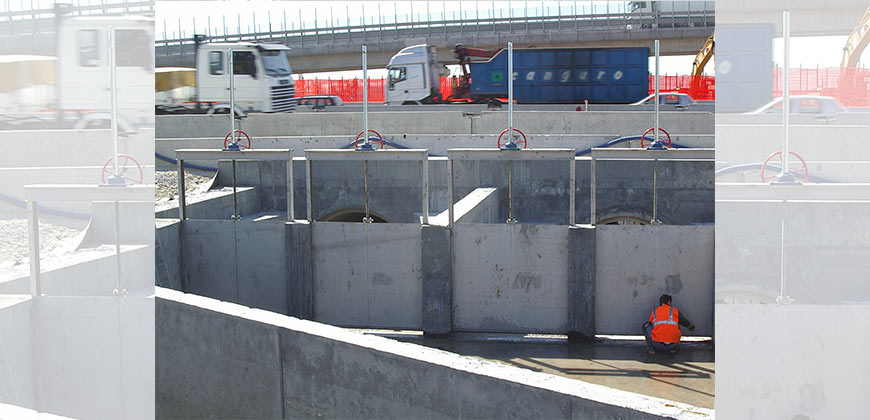

Penstock 2
PAR Penstocks are used in both municipal and industrial waste water treatment plants to isolate a piece of equipment or a parts of a plant.
Durable
Durable
User-friendly
User-friendly
Low maintenance
Low maintenance

Technical Specs

Description

PAR Penstocks mainly consist of a steel frame, a steel gate, a neoprene sealing system sliding inside the frame, a stem, and a manual drive system complete with control wheel.
Penstock

Function

PAR Penstocks are regularly used for a number of operations in both municipal and industrial waste water treatment plants.
Generally they serve the purpose of:
  • Isolating a piece of equipment;
  • Shutting off a whole part of a plant;
  • Controlling water level and / or flow rates.

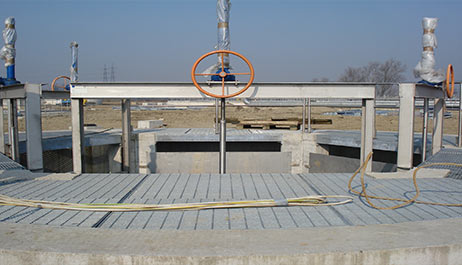

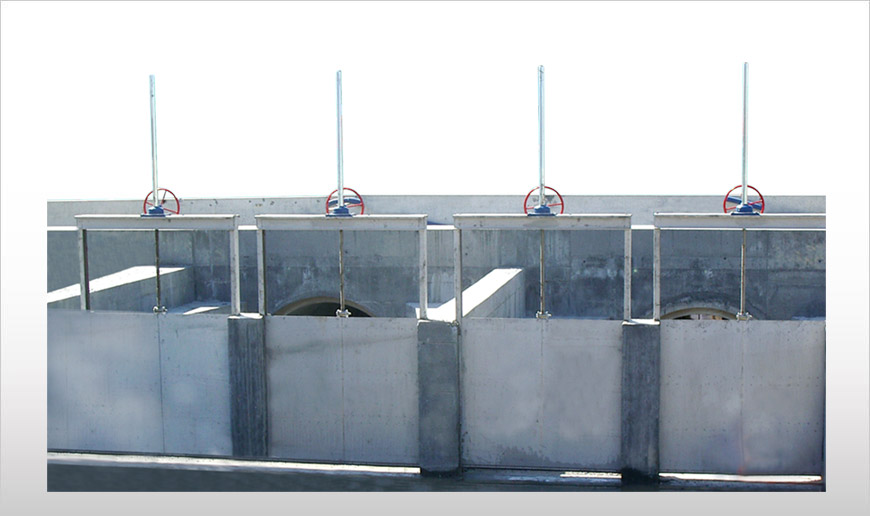

PAR Penstocks are fitted into walls (to close circular, square or rectangular openings/windows) or into channels (with frame enclosed in the concrete).

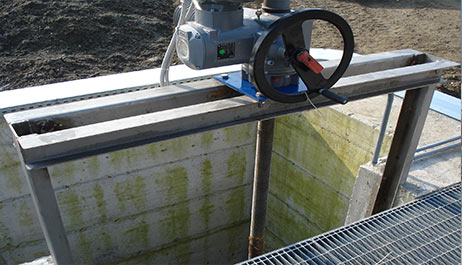

In case of large gate sizes PAR Penstocks are usually equipped with a gear reduction unit complete with electric actuator.

Features

  • Different gate sizes up to 2 m wide and 2 m high available
  • 3 or 4 side sealing system (neoprene hardness 60 Shore)
  • Gate thickness: 6 mm
  • TPN pitch stem – minimum thickness: 30 mm
  • Hot dip-galvanised carbon steel / 304 L / 316 L SS

Benefits

  • User-friendly
  • Robust design
  • Wide range of applications and sizes

Accessories

  • Gearbox complete with hand wheel
  • Electric actuator complete with limit switch, torque limit switch, position sensor, emergency for manual hand wheel, protection degree IP 65
  • Electric actuator ON/OFF
  • Electric actuator with 4-20 mA signal
  • Electric actuator with Profibus inverter
