PS Single Impact Pneumatic Hammers

Introduction

Single Impact Pneumatic Hammers  1

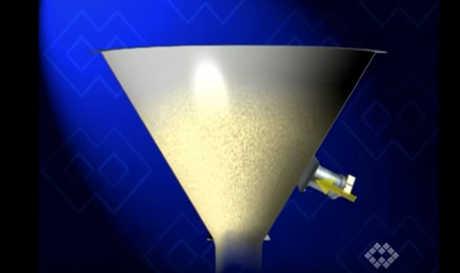

MARTSHOCK PS Single Impact Pneumatic Hammers produce a shockwave generated by a single impact of an internal piston on the metallic base welded on the , or wall. This action is particularly efficient if the powder at issue tends to pack under pressure or stick to the or wall. Moreover, MARTSHOCK PS is an efficient solution against bridging or rat-holing problems.
MARTSHOCK PS Single Impact Pneumatic Hammers are particularly suitable retrofitting existing cones or hoppers since of the or drilling of the wall is not required.
Operation should be intermittent at a pressure ranging from 3 to 6 bar (44 ~ 87 PSI).
When operating multiple hammers, those at the bottom should be activated first, moving progressively upwards at regular intervals to the remaining ones.
MARTSHOCK PS robust design is suitable both outdoor indoor application. External body parts are manufactured from galvanized steel POM.

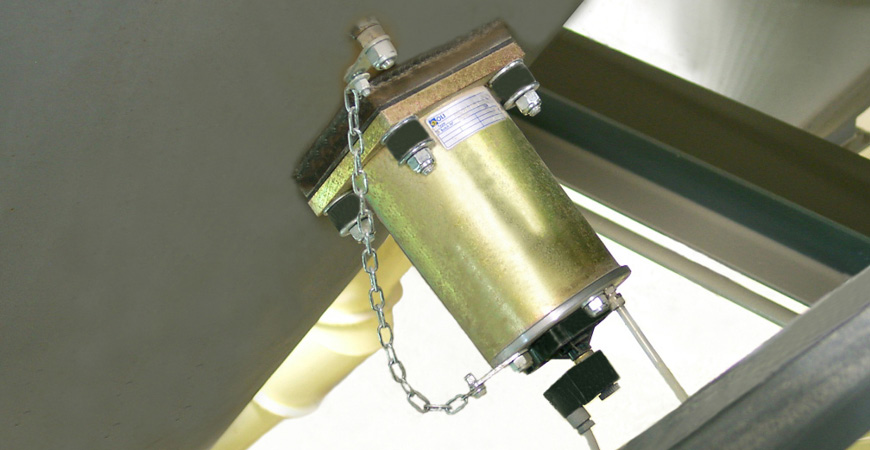

MARTSHOCK PS are supplied with a mounting plate, which has to be welded on the or wall, as well as a safety chain preventing accidental dropping during installation or maintenance.
To satisfy all market demands MARTSHOCK PS is available in three different sizes.

Accessories

  • Coils available in different voltages from 24 V both DC and AC to 230 V (ATEX)
  • Noise reduction and ATEX KIT plate (ATEX II3D cT(x))
  • Timer to adjust period of the blast (min 30 sec)
  • Fully pneumatic kit

Benefits

  • Compact design with integrated valve
  • High performance
  • Easy installation
  • Suitable for potentially explosive environments (ATEX-compliant)

Technical Specs

Solutions

Multimedia

PS MARTSHOCK

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

Cat_FlowAids_CFAEN_0221_rev10-1.pdf
Latest edition: February 2022
English
Code:
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
