SE Submersible Agitators

Highly efficient, reliable, easy to maintain

Introduction

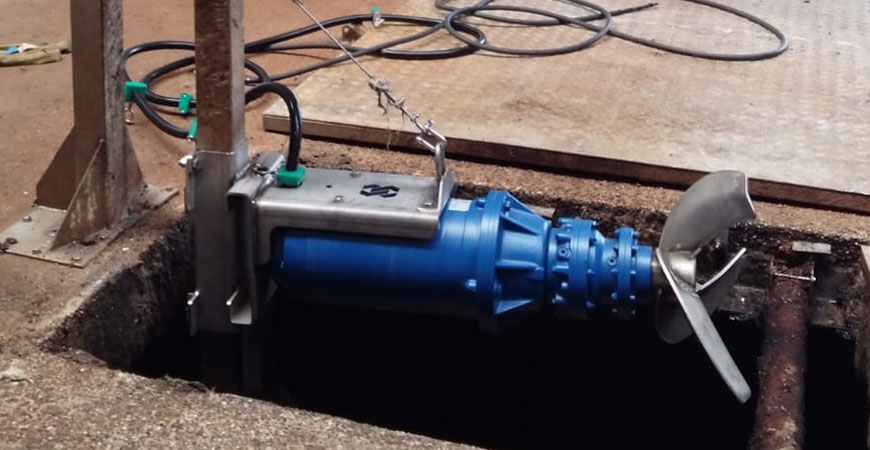

Submersible Agitators 1

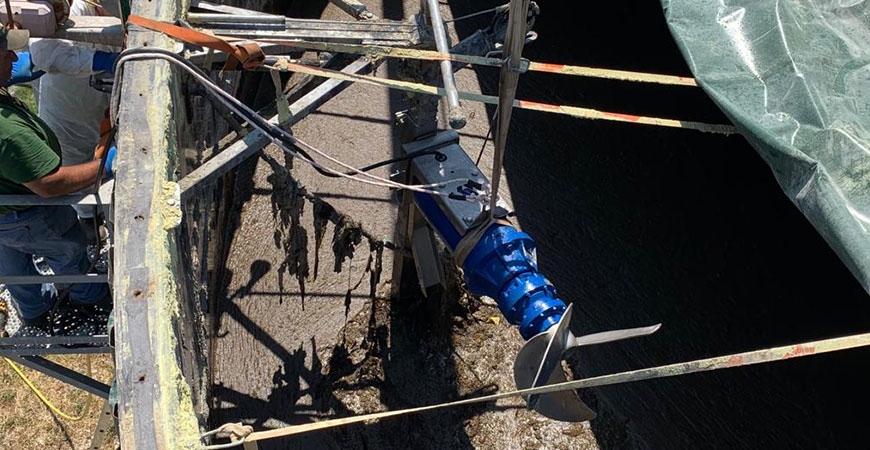

Submersible Agitators 2

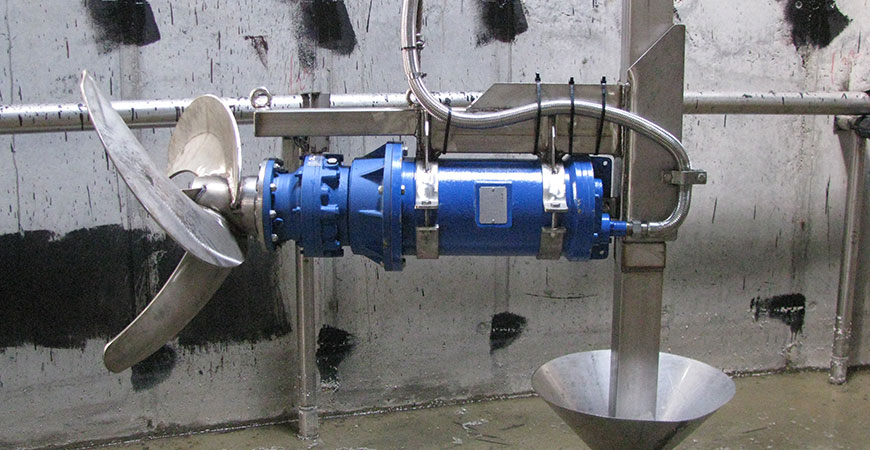

Submersible Agitators 3

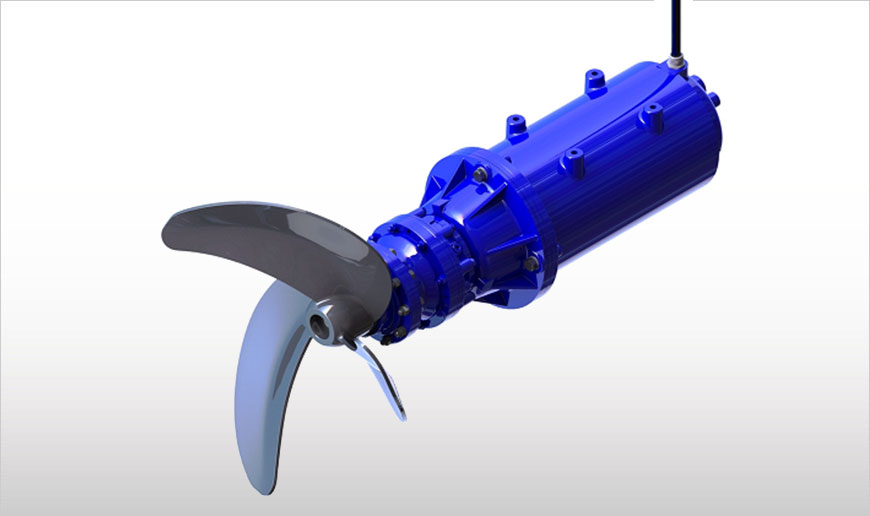

CHIOR SE Submersible Agitators: tried-and-tested optimised technology, further developed into a highly efficient agitator.
High efficiency thanks to modern, innovative propeller shape
High efficiency thanks to modern, innovative propeller shape
Different speeds and propeller diameters individually selected for each application
Different speeds and propeller diameters individually selected for each application
Adjustable support frame suitable for common pole sizes
Adjustable support frame suitable for common pole sizes

Technical Specs

Description

CHIOR SE Submersible Agitators are ideally suited for use with pig and cattle manure, digestate from anaerobic digesters and effluents in both municipal and industrial wastewater treatment plants.
Submersible Agitators

Function

The perfectly coordinated interplay between innovative propeller shape, large motor reserve and fluidically optimised design, enables optimum mixing results with very low power consumption.

Thanks to the proven modular design, different motor outputs, gear units and agitator blade diameters can be combined to form an agitator perfectly matched to the application. In addition, the modular design enables simple and quick maintenance.

Thanks to a simple screw connection modification, the stainless-steel sliding carriage is suitable for the common 100x100 or 120x120mm poles.

Features

  • Cast iron housing
  • Sliding carriage adjustable from 100x100 to 120x120mm
  • Drive power installed: 11.0 / 15.0 / 18.5 and 22.0 kW
  • Speeds installed: 140 / 280 and 350 rpm
  • High-efficiency engineered stainless-steel 3-flight propeller
  • Double sealing system for safe operation
  • High motor reserves for reduced energy consumption
  • Thermal probe to prevent electric motor from overheating

Benefits

  • High efficiency thanks to modern, innovative propeller shape
  • Wide power spectrum thanks to selectable speed, drive power and propeller diameter
  • Adjustable support frame suitable for all common poles (100x100 and 120x120mm)
  • Easy maintenance
  • Low energy consumption thanks to optimal interaction between all components

Accessories

  • Cable guides for use with and without cable protection conduit

Solutions

Solutions by Industry

Environmental Technology

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

SAVECO_CHIOR_SE_EN_0622_EDIT.pdf
Latest edition: June 2022
English
Code: 203001716
SAVECO_CHIOR_SE_FR_0622_EDIT.pdf
Latest edition: June 2022
French
Code: 203001716
SAVECO_CHIOR_SE_IT_0622_EDIT.pdf
Latest edition: June 2022
Italian
Code: 203001717
SAVECO_CHIOR_SE_DE_0622_EDIT.pdf
Latest edition: June 2022
German
Code:
SAVECO_CHIOR_SE_RU_0622_EDIT.pdf
Latest edition: June 2022
Russian
Code:
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
