Introduction
The VFD Paddle Wheel Valve offers an effective solution for discharging, intercepting, and feeding material flow. It is particularly well-suited to handling hygroscopic or poorly flowing materials prone to bridging under pressure
Increased energy efficiency
Makes material processing more efficient
Technical Specs
Description

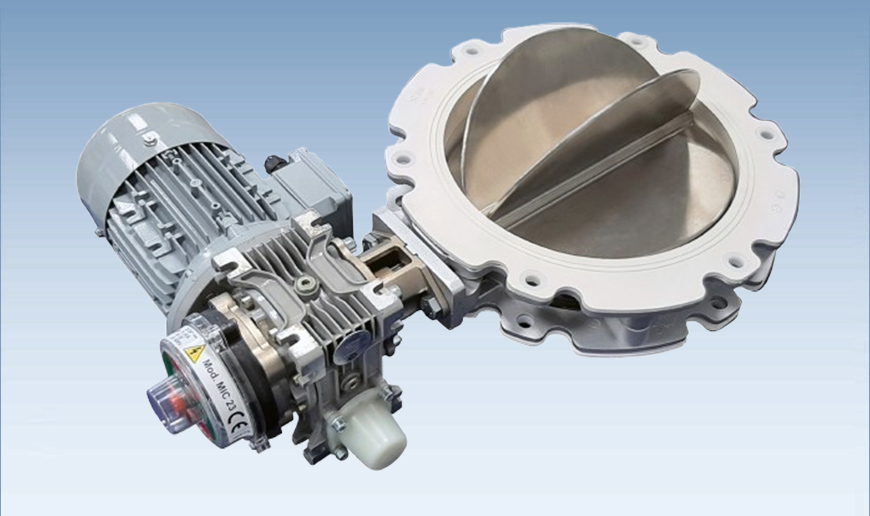

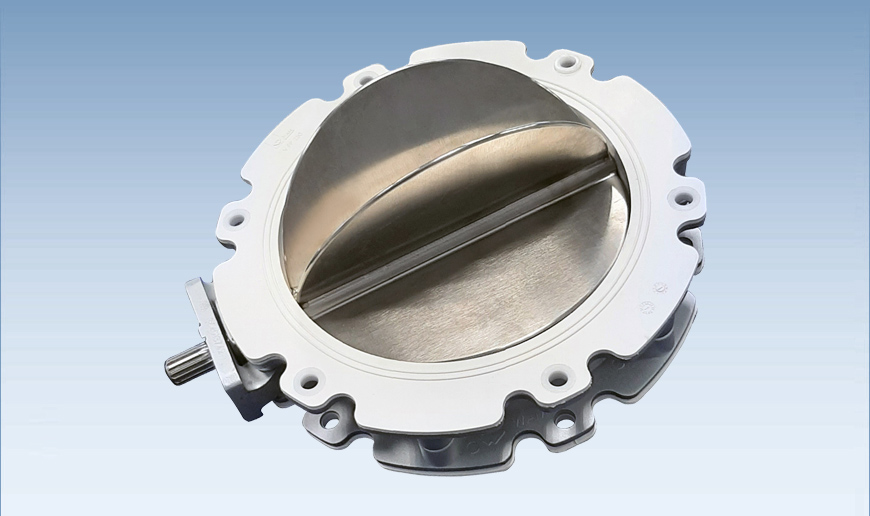

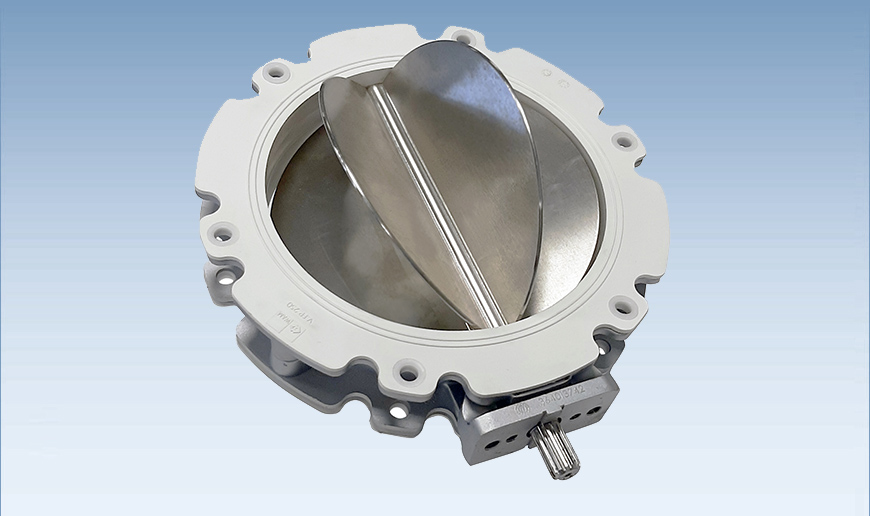

The VFD Paddle Wheel Valve consists of two die-cast aluminium semi-bodies, a stainless-steel feeder paddle wheel and a nitrile rubber gasket.
For the food industry, a version with stainless-steel paddle wheel and FDA-approved integral gasket is available.
The VFD Paddle Wheel Valve can be used for any kind of powder or granular material along the process flow.
Function
The VFD Paddle Wheel Valve is designed for applications where a constant flow of material is required. After feeding, the material is discharged through the outlet for further processing.
The VFD Paddle Wheel Valve is particularly effective for feeding materials with a maximum particle size of 1.5 mm, especially those that are hygroscopic or have poor flow characteristics. It can be installed in loading or discharging lines and is suitable for filling or emptying drums, bins, or FIBC dischargers.
Features
- Food-grade components manufactured from FDA and EC 1935/2004-certified materials
- High-pressure die-cast semi-bodies manufactured from aluminium alloy
- Replaceable paddle wheel
- Easy to disassemble and clean thanks to the small number of components
Benefits
- Compact design for easy maintenance
- Feeding without elevate torque
- Mantaining material quality
- Increased flow rates
- Increased energy efficiency
- Cost-effective operation
- Easy to fit thanks to PN and ANSI flange compatibility
- Lightweight and easy to handle
Options
- Food-grade version
- Connecting spigot
