Low Profile Slide Valves VIG-VIGX

Advanced solutions rather than just equipment supply. Food-grade version in compliance with Regulation (EC) No. 1935/2004 available.

Introduction

Low Profile Slide Valves 1

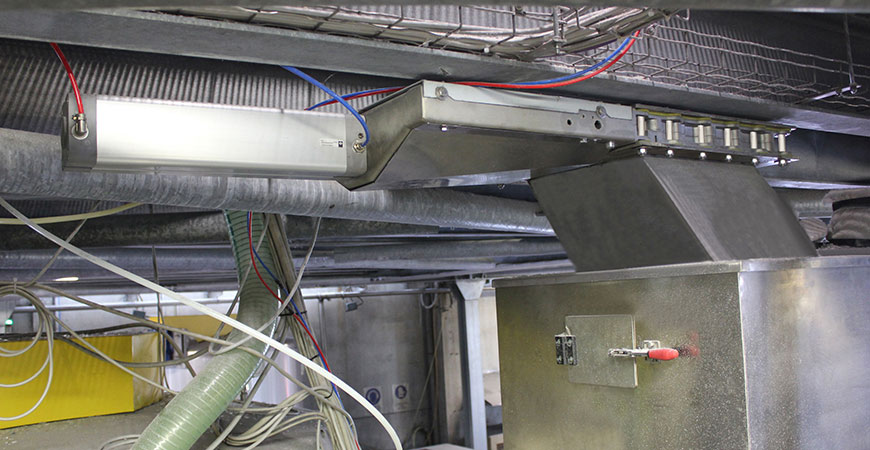

Low Profile Slide Valves 2

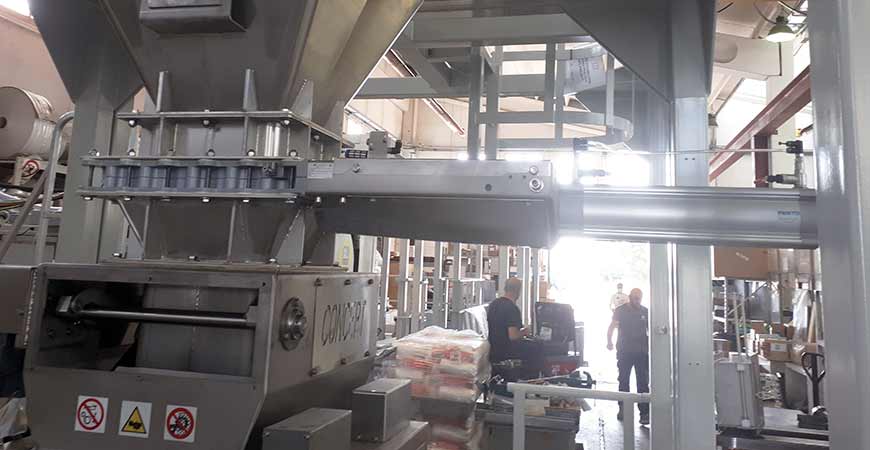

Low Profile Slide Valves 3
The wide use of WAM’s special SINT engineering polymer and an innovative design geometry make these Low Profile aluminium Slides Valves the ideal solution for intercepting the flow of powders, flakes or granular materials in gravity or conveying applications. A food-grade version incompliance with Regulation (EC) No. 1935/2004 matches requirements from the high end of the industry.
Highly abrasion-resistant due to replaceable SINT seal
Highly abrasion-resistant due to replaceable SINT seal
Minimised residue and contamination thanks to low profile design
Minimised residue and contamination thanks to low profile design
Quick fitting thanks to WAM and CEMA flange compatibility
Quick fitting thanks to WAM and CEMA flange compatibility

Technical Specs

Description

Low Profile VIG Slide Valves consist of two high pressure die-cast semi-bodies manufactured from aluminium alloy, a sliding blade in carbon or stainless steel, a carbon or stainless steel frame  and a pre-stressed elastomeric seal manufactured from WAM’s unique SINT engineering polymer composite. The use of SINT engineering polymer composites considerably increases resistance to abrasion as compared to traditional valves. The valves are equipped with live-loaded seals which ensure extended durability and wear resistance, providing excellent sealing across the entire valve surface. Additional flange gaskets are not required. Low Profile VIG Slide Valves are available in a variety of configurations: the VIGQ version comes with a square inlet; the VIGC-type has a circular open cross section.
For the food industry a version with stainless steel blade and frame, as well as food-grade seal is available.
The VIG is a gravity Slide Valve for all kinds of powdery or granular materials stored in silos or bins.
Low Profile Slide Valves

Function

Low Profile VIG Slides Valves are used where flow of a dry powder or granular material caused by gravity or conveying has to be intercepted. Low Profile VIG Slide Valves may be fitted beneath hopper, bin or silo outlets, on inlet and outlet spouts of mechanical conveyors, as well as above the inlet of telescopic loading spouts.
The special geometry of Low Profile VIG Slide Valves and the various options in blade design enable their application in virtually all industries including food processing.
Due to their special design and to the engineering materials used, they represent a particularly economic yet most efficient solution in all product processing  applications where contamination and material pollution are an issue.

Features

  • PATENTED dust-proof, friction-free design
  • Compact: small number of components, minimum overall height
  • Compatible with WAM and CEMA flanges
  • Safe sealing with no additional measures due to the all-round dustproof seal lips integrated into the polymer coating
  • Highly abrasion-resistant, wear compensating, replaceable sealing system in SINT engineering polymer for standard or food-grade applications
  • Integrated inlet deflecting material away from seals and rollers, thus reducing wear
  • ATEX versions and food-grade version compliant with Regulation (EC) 1935/2004 available
  • Interchangeable actuators: manual, pneumatic, electric gear motor
  • Horizontal or vertical mounting
  • Standard sizes: 150 ~ 400mm (6” ~ 16”)

Benefits

  • No contamination due to carbon or stainless steel blade and valve frame lined with engineering polymer
  • Dust, pellet and granule-proof thanks to special component geometry
  • Highly abrasion-resistant due to replaceable SINT seal
  • No downtime for seal adjustment
  • Easy integration into the process thanks to light weight and eased handling
  • Quick fitting thanks to WAM and CEMA flange compatibility
  • High flexibility and time-saving maintenance due to interchangeable components
  • Better performance as a result of friction-free contact design (no waste of actuator torque to increase friction)
  • Safe operation thanks to total absence of pinch points and exposed moving parts
  • Optimised maintenance thanks to small number of components
  • Minimised residue and contamination thanks to low profile design
  • Ex-stock delivery

Options

  • ATEX versions and food-grade version compliant with Regulation (EC) 1935/2004
  • Interchangeable blade in carbon or stainless steel
  • Food-grade seals

Solutions

Solutions by Industry

Building & Construction

Feed & Food

Plastics & Chemicals

Heavy Industries

Plants & Machinery

Environmental Technology

Miscellaneous

Solutions by Technology


Multimedia

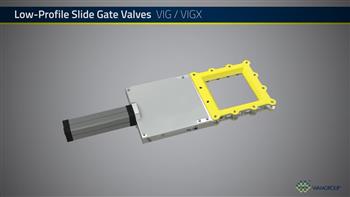

Low Profile Slide Valves VIG

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
