Diverter Flap Valves DVA

Efficient flow diversion for powders or granules

Introduction

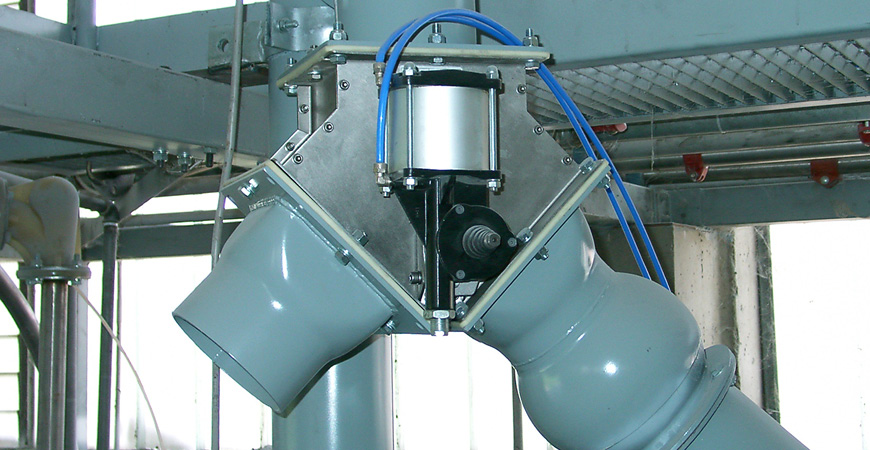

Diverter Flap Valves 1

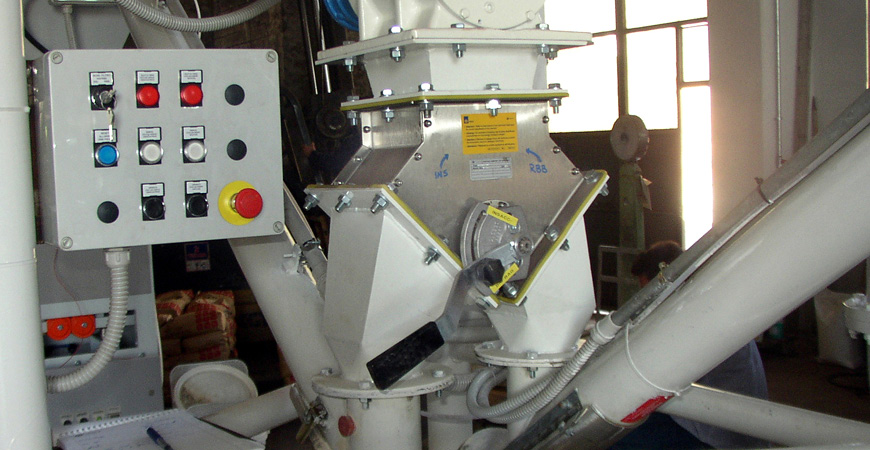

Diverter Flap Valves 2

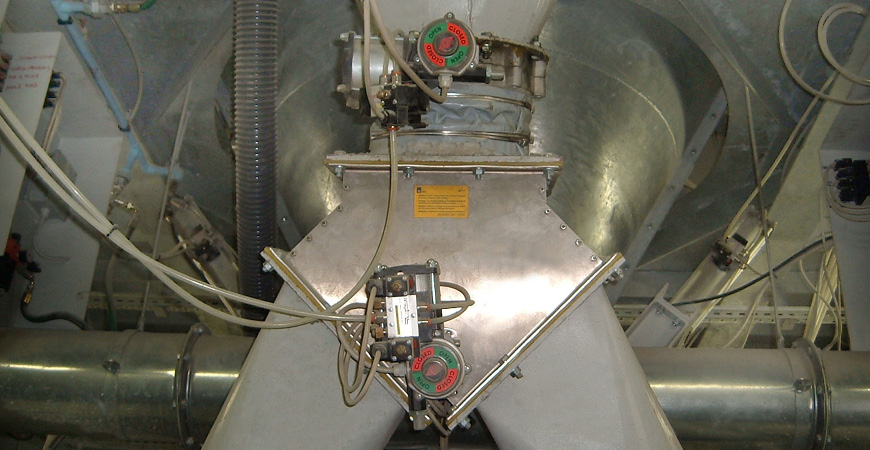

Diverter Flap Valves 3
DVA Diverter Flap Valves ensure efficient flow diversion for powdery or granular materials in a variety of industrial processes.
Elastic outline of SINT flap ensuring material is diverted without particle breakdown, grinding or jamming
Elastic outline of SINT flap ensuring material is diverted without particle breakdown, grinding or jamming
Minimised maintenance and easy access for parts replacement
Minimised maintenance and easy access for parts replacement
Ex-stock delivery
Ex-stock delivery

Technical Specs

Description

DVA-type Diverter Flap Valves consist of a casing made up of two high-pressure die-cast semi-bodies manufactured from aluminium alloy, lined with SINT engineering polymer, and a SINT engineering polymer flap. The flap is either activated by a manual lever, a pneumatic or an electric actuator.

Diverter Flap Valves

Function

DVA is a Diverter Flap Valve with one inlet and two outlets for the diversion of the flow of powdery or granular materials. Materials used enable quick cleaning and maintenance apart from offering great resistance to abrasion.


Features

  • Wear-resistant, replaceable SINT engineering polymer liner for minimised chute wear
  • SINT engineering polymer valve components for standard or food-grade applications
  • Contact between diverter flap and body SINT liner ensures dustproof sealing
  • Manual lever, pneumatic or electric actuator

Options

  • Square or circular connecting spigot

Accessories

  • Elastic outline of SINT flap ensuring material is diverted without particle breakdown, grinding or jamming
  • Minimum maintenance
  • Easy access for parts replacement
  • Ex-stock delivery

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

DVA_0321_EN_EDIT.pdf
Latest edition: June 2021
English
Code: 203001738
DVA_0912_EDIT.pdf
Latest edition: September 2012
French, German
Code: 063001432
DVA_DE_0915_EDIT.pdf
Latest edition: September 2015
German
Code: 203001114
DVA_IT_0915_EDIT.pdf
Latest edition: September 2015
Italian
Code: 203001107
DVA_Wam_Inc_0912_EDIT.pdf
Latest edition: September 2012
American english
Code:

Application Datasheets

DS_AnimalFeedMilling_DVA_1214_ENG.pdf
Latest edition: December 2014
English
Code:
DS_DryMix_DVA_0415_ENG.pdf
Latest edition: April 2015
English
Code:
DS_FlourMilling_DVA_0115_ENG.pdf
Latest edition: January 2015
English
Code:
DS_PaintandVarnish_DVA_0915_ENG.pdf
Latest edition: January 2015
English
Code:
DS_PlasticsProcessing_DVA_1214_ENG.pdf
Latest edition: December 2014
English
Code:
