EXTRACURVE Wide Radius Anti-Wear Pipe Elbows

Innovative design

Introduction

Wide Radius Anti-Wear Pipe Elbows 1

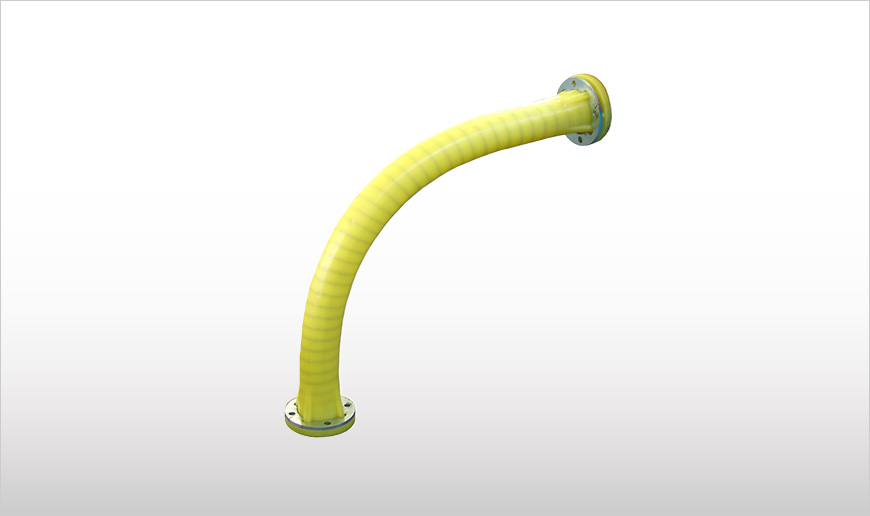

EXTRACURVE Pipe Elbows represent the latest evolution in the development of wide angle pipe elbows. Due to their flexibility and adaptability, installation becomes quicker while durability is dramatically increased.

Elasticity
Elasticity
SINT ensures conveying of material without particle breakdown, grinding or jamming
No risk of clogging
No risk of clogging
Self-cleaning and durable
Self-cleaning and durable

Technical Specs

Description

EXTRACURVE are highly elastic, wide radius Pipe Elbows which are inserted as a link in pneumatic conveying ducts. They are manufactured from a one-piece SINT engineering polymer cast with a helicoid spring core. Their great flexibility and excellent resistance to wear result in double durability as the Elbow can be simply mounted in reverse position as soon as it shows any sign of wear.
Wide Radius Anti-Wear Pipe Elbows

Function

EXTRACURVE Pipe Elbows represent the latest evolution in the development of wide angle pipe elbows. Due to their flexibility and adaptability, installation becomes quicker while durability is dramatically increased.


Features

  • SINT engineering polymer-cast body design
  • Wide material impact zone
  • SINT versions for plastic pellets,  granules, sand  and fine, abrasive or chemically highly aggressive powders
  • PN-type connecting flanges
  • Higher resistance to wear than traditional carbon or stainless steel pipe elbows
  • Flexible and lightweight
  • Particularly suitable for retrofitting
  • Reduced noise level
  • Easy disposal
  • For both vacuum and positive pressure conveying, as well as low density dilute phase pneumatic conveying
  • No material contamination
  • No risk of mechanical degradation or biochemical decomposition of the material

Benefits

  • Elasticity of SINT ensures conveying of material without particle breakdown, grinding or jamming
  • Considerable reduction of flow resistance, consequently energy saving pneumatic conveying
  • Eco-friendly
  • Low cost for installation, pipeline support and installation, thanks to compact design
  • Minimised pressure drop
  • Low pipe wear
  • No risk of clogging
  • Self-cleaning
  • Durable
  • Minimum maintenance
  • Ex-stock delivery

Options

  • Connecting spigot for existing ducts
  • Food-grade version (FDA-approved)

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.
