Flap Diverter Valves VAB

Minimum pressure drop, high sealing efficiency

Introduction

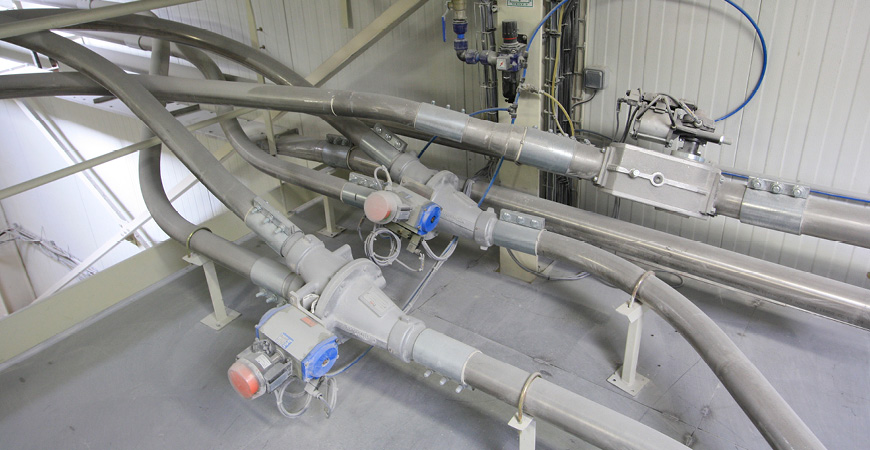

Flap Diverter Valves 1

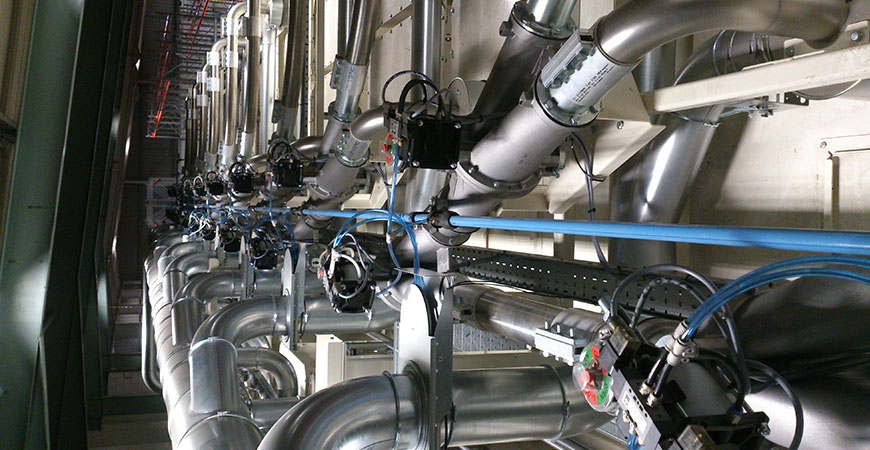

Flap Diverter Valves 2

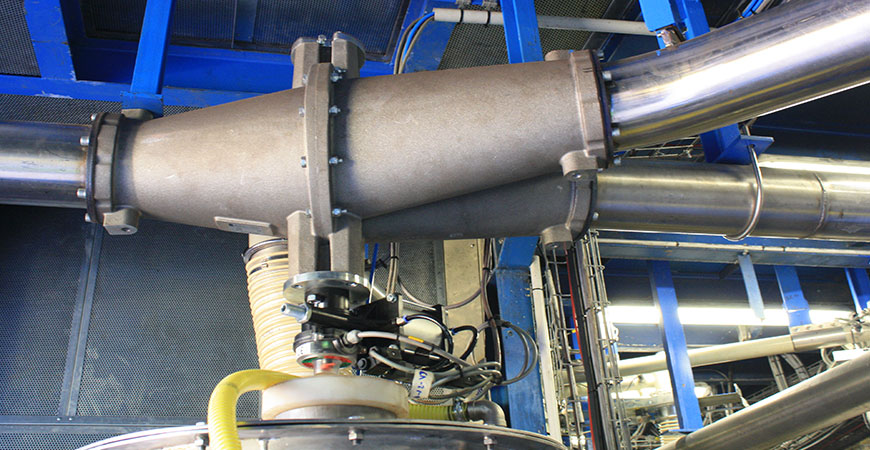

Flap Diverter Valves 3

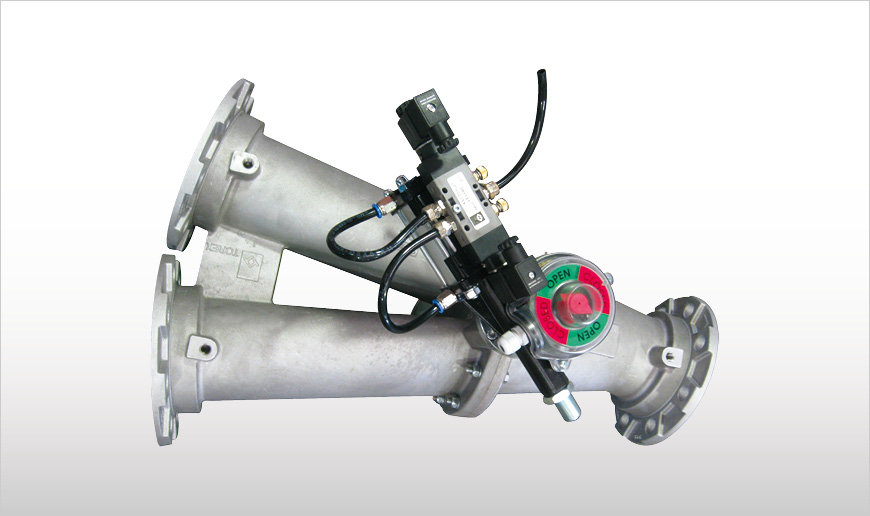

VAB Two-Way Flap Type Diverter Valves meet the requirement of pneumatic conveying plants in re-routing powders, pellets or granules from one discharge point to another, with minimum pressure drop and high sealing efficiency.

Smooth internal surface (no dead spots)
Smooth internal surface (no dead spots)
Modular design and easy maintenance thanks to limited number of components
Modular design and easy maintenance thanks to limited number of components
Lightweight and compact overall dimensions
Lightweight and compact overall dimensions

Technical Specs

Description

The VAB Flap Diverter Valve uses a swinging flap to divert material from one duct to another.
VAB Flap Diverter Valves are fitted on pneumatic conveying ducts in which switching the flow of material to different production lines is required.

Flap Diverter Valves

Function

The VAB Two-Way Flap Type Diverter Valve is designed to meet the requirement of pneumatic conveying plants in re-routing powders, pellets or granules from one discharge point to another, with minimum pressure drop and high sealing efficiency.


Features

  • Cast aluminium alloy casing
  • Various actuators in different voltages
  • Aluminium-cast and nickel-plated versions available
  • Mobile flap seal:
    EPDM (white colour, food-grade certified, antistatic)
    Metal plate: 304 stainless steel
  • Working temperature: -20 ~ 80 °C (-4 ~ 176 °F)
  • Working pressure: max. 2.0 bar, min. -0.3 bar (29 / -4.3 PSI)
  • Diameter: 50 ~ 200 mm (2 ~ 8 in)

Benefits

  • Easy to use as diverter or converter
  • Narrow diverting angle of 22.5°
  • Low pressure drop due to minimum transition effect
  • Smooth internal surface (no dead spots)
  • Modular design and easy maintenance thanks to limited number of components
  • Lightweight and compact overall dimensions

Options

  • ATEX certification
  • Two types of connecting flanges: TOREX or DIN

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.
