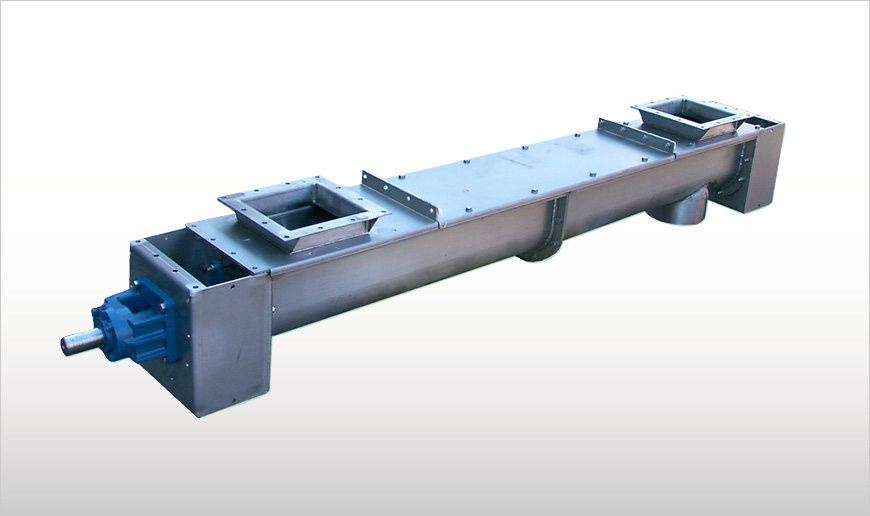

High-Temperature Screw Conveyors MT-HT

Sturdy, safe, reliable

Introduction

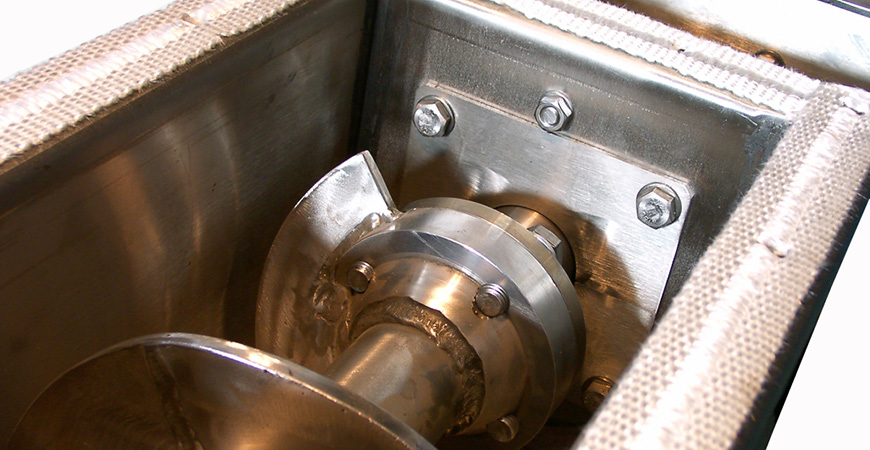

High-Temperature Screw Conveyors 1
Designed for extra heavy-duty applications, MT / HT Screw Conveyors and Feeders perfectly satisfy the requirements of conveying or feeding – among others – regenerated sand in foundries, coal power stations, or drying plants.

Application-specific design features
Application-specific design features
Robust and durable
Robust and durable
Reliable in operation
Reliable in operation

Technical Specs

Description

Extra heavy-duty MT / HT Trough Screw Conveyors and Feeders are designed for medium-high temperature (MT-series) and high temperature (HT-series) applications. For this reason intermediate bearings are absent. MT / HT are manufactured from carbon or stainless steel with appropriate surface treatment. They are made up of a U-shape trough equipped with at least one outlet spout, an end plate at each trough end, helicoid screw flighting welded on a centre pipe with flanged coupling at each end, two end bearing assemblies complete with offset shaft seal, and a bolted trough cover usually equipped with at least one inlet spout. Furthermore, MT / HT Screw Conveyors are equipped with a gear motor that suits the application.

High-Temperature Screw Conveyors

Function

Designed for extra heavy-duty applications, MT / HT Screw Conveyors and Feeders satisfy the requirements of conveying or feeding regenerated sand in foundries, coal power stations, or drying plants.


Features

  • Extra heavy-duty fabrication
  • Wire welding
  • XUC-type shaft seals with fibreglass seals
  • Bolted trough covers
  • Fibreglass gaskets
  • Flanged shaft couplings
  • Extra heavy-duty helicoid flights
  • Insulation spacer (HT)High quality shaft seals with split packing glands (HT)

Benefits

  • Application-specific design features
  • Robust and durable
  • Reliable in operation

Options

  • Tapered inlet spouts
  • Shoe inlets
  • Square or rectangular inlets
  • Trough flange brackets for hopper connection
  • Semi-elastic couplings or chain power transmissions

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

MT_HT_0912_EDIT.pdf
Latest edition: September 2012
English, French, German, Italian
Code: WA.MT-HT
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
