PG Air Cannons

Introduction

Air Cannons 1

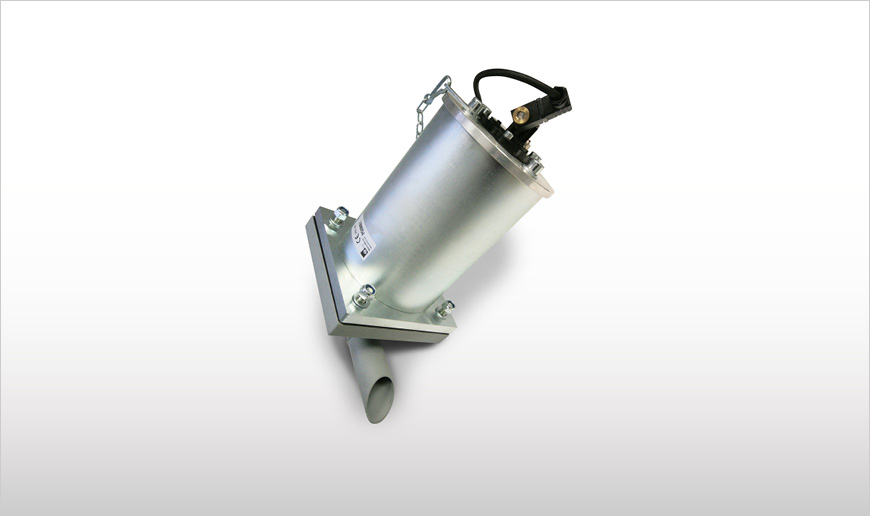

GUNJET PG Air Cannons (blasters) are successfully used where bridging or rat-holing occurs.
They are ideal for setting in motion irregularly shaped, dry and light bulk solids (e.g. fibres, shavings, flakes, wood chippings, plastic chippings).
GUNJET PG Air Cannons are designed to inject blasts of high pressure gas at up to 6 bar (87 PSI), for a short duration (typically fractions of a second) resulting in bridging or rat-holing material to collapse.
In the standard version GUNJET PG Air Cannons are electro-pneumatically activated. A fully pneumatic version is available on request.
When operating multiple air cannons, those at the bottom should be fired first, moving on progressively upwards at regular intervals.
The curved outlet pipe conveys air tangentially along the wall of the bin or silo.
Its robust design makes the GUNJET PG Air Cannon suitable for both indoor and outdoor installation. The external parts of the body are manufactured from galvanized steel and aluminium.
GUNJET PG Air Cannons are supplied with a mounting plate which has to be welded on the bin/hopper/silo wall. A safety chain prevents accidental dropping during installation or maintenance.
GUNJET PG Air Cannons come in three different sizes.

Accessories

  • Coils available in different voltages from 24 V both DC and AC to 230 V (ATEX)
  • Timer to adjust period of the blast (min 30 sec)
  • Fully pneumatic kit

Benefits

  • Compact design with integrated valve
  • Reliable in operation
  • Zero impact on bin or silo structure

Technical Specs

Description

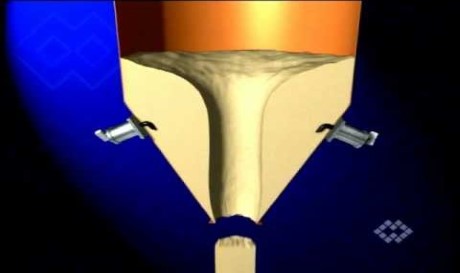

Rat-holing is a phenomenon that frequently occurs inside bins or silos with certain materials. Due to the physical and chemical properties of the product, the central material column drops instantaneously as soon as the silo outlet valve is opened, while the surrounding material remains immobile. Especially with light materials a PG-type GUNJET Air Cannon is often the ideal solution for such inconvenient situations. Other applications are the corners of rectangular-shaped bins where because of tiled walls or inserts, hammering or vibration on the outlet sections is unsuitable. GUNJET Air Cannons are also successfully used in cases where bridging occurs.
Air Cannons

Multimedia

GUNJET PG-Type - Air Cannons

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

Cat_FlowAids_CFAEN_0221_rev10-1.pdf
Latest edition: February 2022
English
Code:
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
