Diverter Valves for Pneumatic Conveying Lines VAD

Excellent price-performance ratio

Introduction

Diverter Valves for Pneumatic Conveying Lines 1

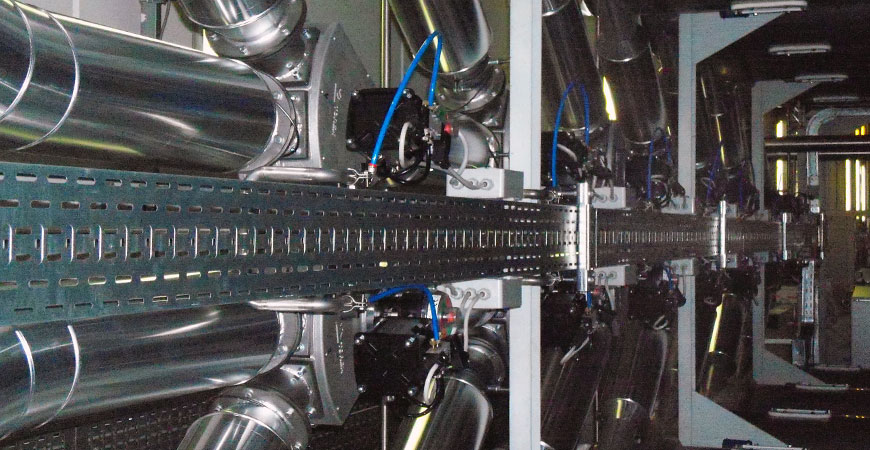

Diverter Valves for Pneumatic Conveying Lines 2

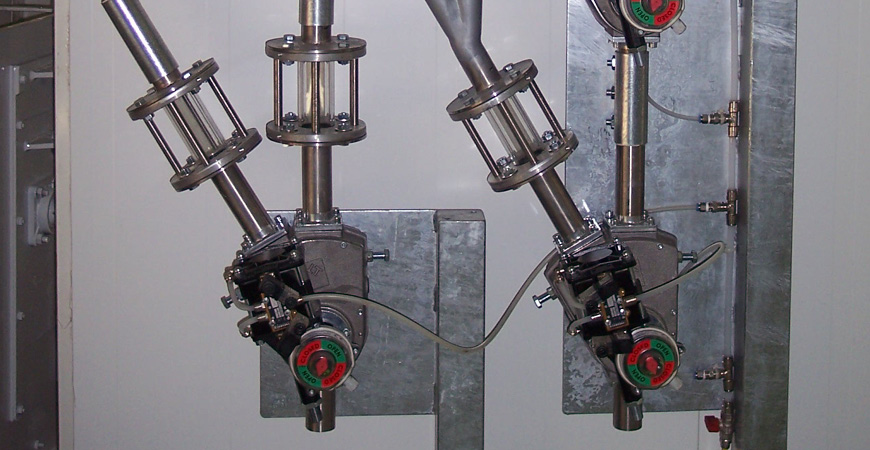

Diverter Valves for Pneumatic Conveying Lines 3
VAD-type Diverter Valves are the ideal solution for handling any type of material in powdery or granular form in pneumatic conveying lines.

Compact overall dimensions
Compact overall dimensions
Lightweight design
Lightweight design
Maintenance-friendly
Maintenance-friendly

Technical Specs

Description

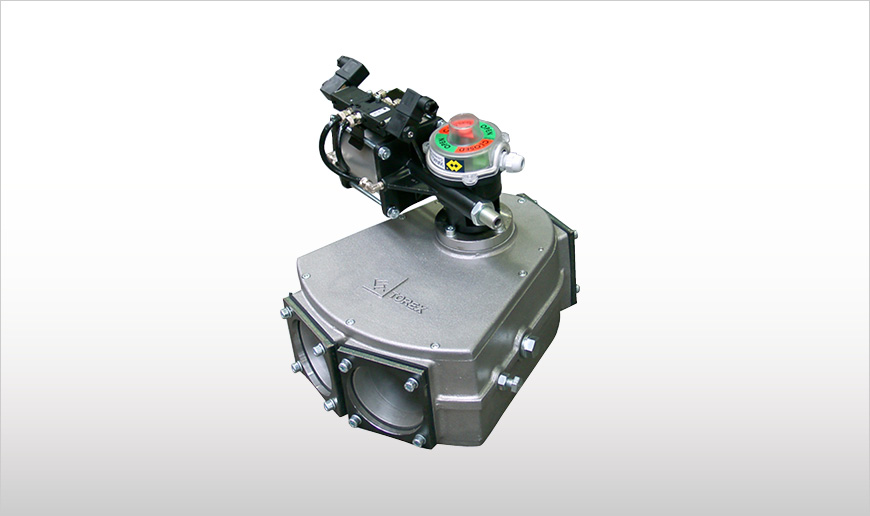

VAD Diverter Valves consist of an aluminium die-cast casing and a swivel flap that closes one duct or the other. Internal sealing of the body is achieved through low friction gaskets.
Specific surface treatment is available to make the valves suitable for operation with different materials.

Diverter Valves for Pneumatic Conveying Lines

Function

VAD-type Diverter Valves are suitable for use in pneumatic conveying lines for handling any type of material in powdery or granular form.
Through activation of the actuator direction of the material flow is changed. VAD-type Diverter Valves guarantee minimum pressure loss and contamination-free, pressure-proof operation.


Features

  • Cast aluminium alloy casing
  • Various actuators in different voltages
  • Aluminium-cast or nickel-plated versions available
  • Operating temperature: -20 ~ 80 °C (-4 ~ 180 °F)
  • Operating pressure: max. 2.5 bar (36 psi)

Benefits

  • Lightweight design
  • Compact overall dimensions
  • Easy to install
  • Maintenance-friendly

Options

  • Pneumatic actuator
  • Electric swivel drive
  • Lever for manual actuator

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

VAD_0213_EN_EDIT.pdf
Latest edition: February 2013
English
Code: 063001497
jap_VAD_0505.pdf
Latest edition: May 2005
Japanese
Code:
VAD_0313_IT_EDIT.pdf
Latest edition: March 2013
Italian
Code: 063002368
VAD_0912_EDIT.pdf
Latest edition: September 2012
French, German
Code: TOR.330
VAD_Wam_Inc_1213_EDIT.pdf
Latest edition: December 2013
American english
Code:

Application Datasheets

DS_AnimalFeedMilling_VAD_1214_ENG.pdf
Latest edition: December 2014
English
Code:
DS_FlourMilling_VAD_0115_ENG.pdf
Latest edition: January 2015
English
Code:
DS_LimeDosing_VAD_0415_ENG.pdf
Latest edition: April 2015
English
Code:
